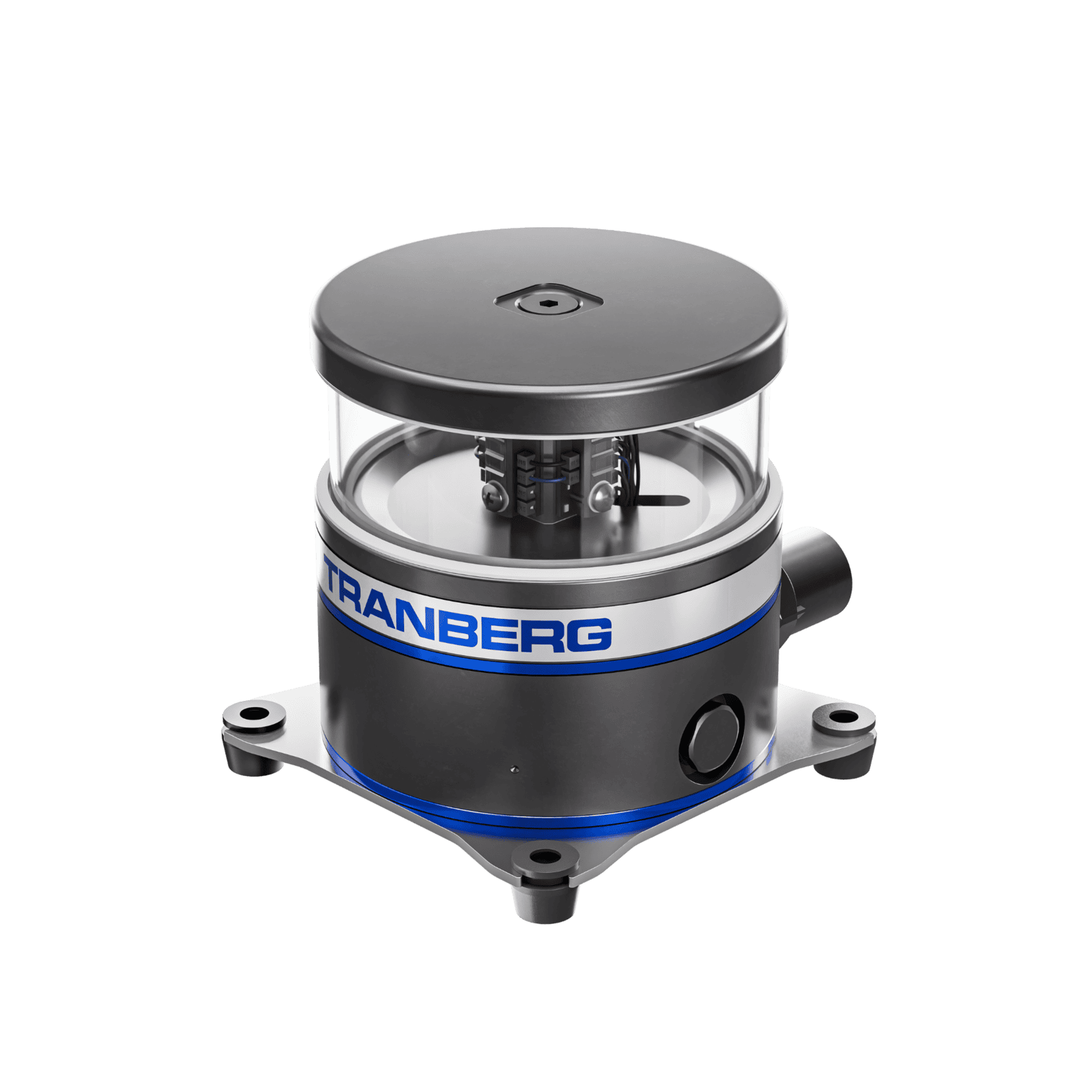

TRANBERG® BlueLine Navigation Light Simplex
TEF 2880 LED
For Vessels >50m in Length
Relaterte produkter
TEF 26x0 LED51 400W Retrofit Unit
The operator panels for TEF 4500 Commander Utility are very flexible in sizes and configurations. The panels are custom built and allow for the use of text in several languages
TEF 2650 Commander LED 400W Network Operated Safe Area
TEF 2650 Commander Halogen/Xenon, Network Operated Safe Area
Material: Anodized seawater resistant aluminium, stainless steel and glass Ingress protection: IP 66/67 Weight: 1,5 kg Mounting: 4ea M6 Cable entries: Phoenix QPD quick installation plugs for cable up to 2,5mm2, cable gland, possibility for through wiring Operating temperature: -30° to +45°C Working hours: Predicted 50 000 h Light source: COB-LED Light distribution: Wide Light color & output: 2200k 1500lm 4000k 1900lm 5000k 2000lm CRI: >80 Power supply: 100-240 V AC / 24V DC Power consumption: Max. 15W
Aviation
TEF 2460 Obstruction Light LED Zone 1, Zone 2 & Safe Area Tranberg TEF 2460 EX Obstruction Light is a high quality fixture which can be used in most applications, especially for those hard to reach places. Covering the requirements within ICAO for Low Intensity obstruction lights (Type A & B), it is a versatile unit which exceeds customer expectations.
Aviation
TEF 2440 LED Obstruction Light Low Intensity, Type B Safe Area Material: Acid proof stainless steel powder coated RAL9010 Globe: Polycarbonate, red Input voltage: 230 VAC 50/60Hz, 24 VAC/VDC Light output: >32cd. (According to ICAO Annex 14 Vol. 1 Ch. 6 Low Intensity Type B) Power consumption: Max. 10W Life length, light source: Min. 50,000 working hours Cable entries: 2 x Ø25 mm Delivered with 2 x E204/622 M25/D kit, brass Cable diameter: 11,0-15,0 mm -15,0-20,1 mm Operating temperature: -30° to +45°C Ingress protection: IP66 Weight w/ package: 2.0 kg
The operator panels for TEF 4500 Commander Utility are very flexible in sizes and configurations. The panels are custom built and allow for the use of text in several languages
