Solutions · Marine
Marine
Marine Lighting & Control Systems for Safe and Reliable Shipping
Our Marine portfolio is trusted worldwide for safe and efficient shipping operations. Our range includes navigation lights, searchlights, floodlights, control panels, and winterisation systems—all designed for maximum reliability in demanding marine environments. Built with durable, low-maintenance materials and certified to international standards, our solutions ensure safety, visibility, and long-term performance for vessels of all sizes.
- DNV MED/MER
- IMO/COLREG
- Stainless steel AISI 316L
- LED with long service life
- Own factory in Norway
Product groups
Choose a product group
23 productsSearchlights
Our Searchlights & Control Systems deliver extreme-range, dependable lighting for all marine environments.
See the products →
19 productsNavigation Lights Systems
TRANBERG's Navigation Lights Systems ensure reliable visibility and compliance in all marine conditions.
See the products →
10 productsTechnical Lighting
See the products →
7 productsControl Panels
See the products →
4 productsFloodlights
Our Floodlights deliver high-output, durable lighting for marine applications—from decks and rescue zones to cranes and walkways.
See the products →On board
Lighting that has to work when everything else fails
Navigation lights, searchlights and floodlights are safety equipment first. Ours are built to survive salt, ice and vibration for decades, with certificates that follow every part number.
How we help
More than the products
Project management
Sizing, lighting and heat loss calculations, documentation for class and commissioning.
Own factory
Designed, built and tested under one roof, with short delivery times and room for changes.
Datasheets and certificates
Datasheets, Ex certificates, declarations of conformity and STEP files are on every product page.
Talk to an engineer
Send us the drawings or the equipment list and we propose a solution, part numbers and documentation.
Floodlights
TEF 2581 BlueLine Floodlight 5000 lm – LED area lighting, 2200 K to 5000 K, standard or DALI
Compact LED floodlight for area lighting on ships and smaller vessels: 5000 lumen at 40 W, IP66/67, seawater-resistant C5M powder-coated aluminium with glass front and AISI 316L bracket, M25 QPD quick plug, sealed for life. Narrow, medium or wide light distribution in 2200 K, 4000 K or 5000 K, 200–240 V AC or 24 V DC, standard or DALI. 27 part numbers – select by version below.
LED searchlight replacing the 2000 W halogen: 84 LEDs, 30 000 lm, 4.75 Mcd, 4.3° beam, approx. 2 000 m at 1 lux, 1.5 A at 230 V, IP56, RS-485 network control. Standard or hanging mounting – select below.
Floodlights

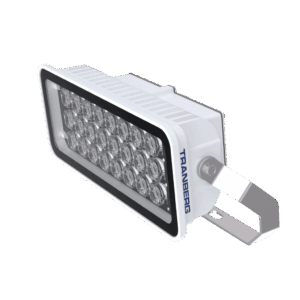

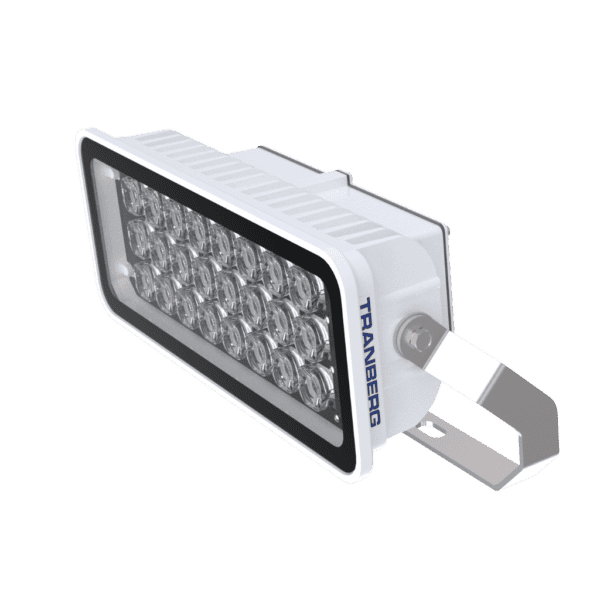

TEF 2581 BlueLine Floodlight 10 000 lm – LED area lighting, 2200 K to 5000 K, standard or DALI
Compact LED floodlight for area lighting on ships and smaller vessels: 10 000 lumen at 77 W, IP66/67, seawater-resistant C5M powder-coated aluminium with glass front and AISI 316L bracket, M25 QPD quick plug, sealed for life. Narrow, medium or wide light distribution in 2200 K, 4000 K or 5000 K, 200–240 V AC, standard or DALI. 20 part numbers – select by version below.

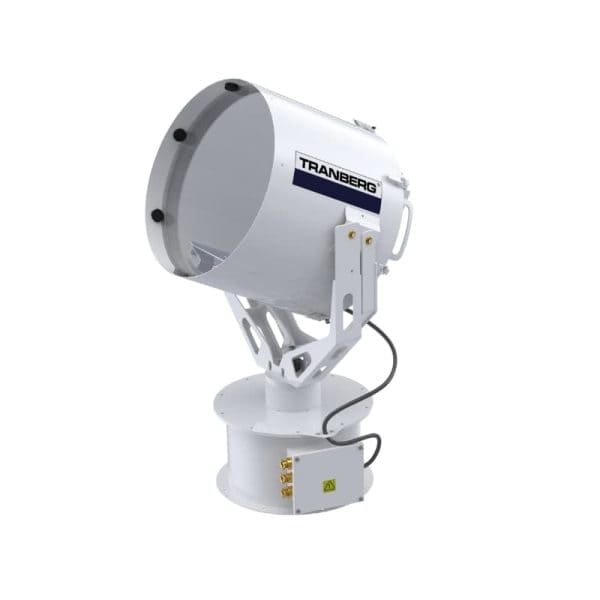

Long-range xenon searchlight in stainless steel with HBX power supply: 1000 to 3000 W, 40 to 91 Mcd, 6 700 to 11 500 m at 1 lux, motor focus 2–8°, IP56, −50 °C, RS-485 network control. The preferred searchlight for ice navigation. Four part numbers – select below.
Stainless steel halogen searchlight for professional vessels: 1000 W with 305 mm mirror or 2000 W with 450 mm mirror, with or without motor focus, IP56, controlled over RS-485 from TEF 2612/2613 panels. Five part numbers – select below.

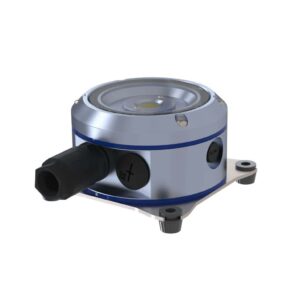

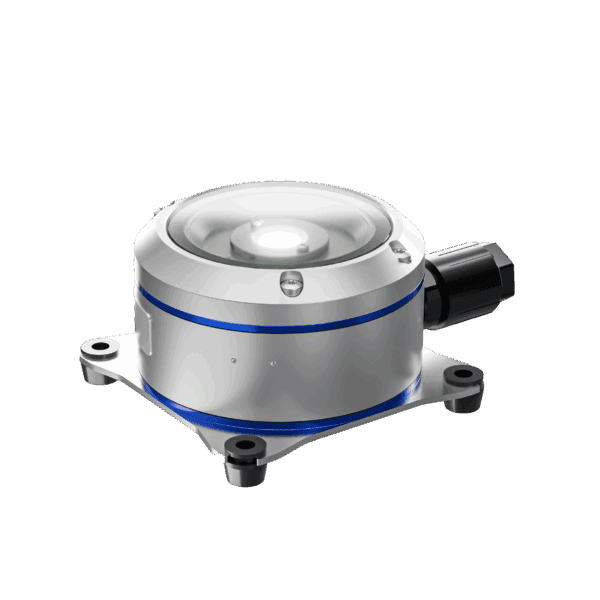

Compact 15 W LED luminaire for walkways, car decks, engine rooms and cargo areas: anodised aluminium, IP66/67, 1.5 kg, 50 000 h, Phoenix QPD quick plugs. 100–240 V AC or 24 V DC in 2200, 4000 and 5000 K, plus blue signal light. 31 versions – select below.
Red omni-directional LED obstruction light for cranes, masts and structures in safe areas: >32 cd to ICAO Annex 14 Vol. 1 Ch. 6 Type B, acid-proof stainless steel with red polycarbonate globe, max. 10 W, IP66. 230 V AC or 24 V AC/DC – select below.
Explosion-protected red obstruction light in hot-forged brass with polycarbonate dome: Ex eb mb op is IIC T5 Gb, encapsulated electronics, IP66/67, −55 to +55 °C. 32 cd (ICAO Type B) or 10 cd (Type A), AC or 24 V DC, with IR LEDs for night vision on request. Six versions – select below.
Direct operated stainless steel halogen searchlight, 1000 W (305 mm mirror) or 2000 W (450 mm mirror), IP56, TEF 2610 panel. Discontinued 31 March 2027, orders until 31 December 2026; recommended replacement TEF 2650 Commander. Two part numbers – select below.
Bridge operated stainless steel halogen searchlight aimed by shaft and lever from the wheelhouse: 250 W 24 V, 1000 W or 2000 W, without or with 300/800 mm pedestal, IP56. Discontinued 31 March 2027, orders until 31 December 2026; recommended replacement TEF 2650 Commander. Nine part numbers – select below.
Explosion-protected navigation light for zone 2 and safe area (II 3G Ex nR IIC Gc T5): powder-coated aluminium with coloured glass lens, integrated terminal box, top-hinged for quick lamp change, IP56, −52 °C to +45 °C, B22 lamp 55 W (20–50 m) or 85 W (over 50 m). DNV MED, ATEX and IECEx. 9 part numbers – masthead, side, stern, Suez, towing and all-round lights.
Cast brass navigation and signal light with through-coloured glass lens for vessels of 20–50 m and over 50 m. Masthead, side, stern, all-round and signal lights in 24 V, standard or Zone 2 Ex version. MED and ABS approved, 20 years warranty. 30 part numbers – select by location and colour below.
Compact LED navigation and signal light in anodised aluminium with glass lens and two independent light sources, 100 000 h each, so main and spare light sit in one housing. Masthead, side, stern, all-round and signal lights for ships over 50 m, 24 V DC, IP66/67, DNV MED approved. 25 part numbers – select by location and colour below.

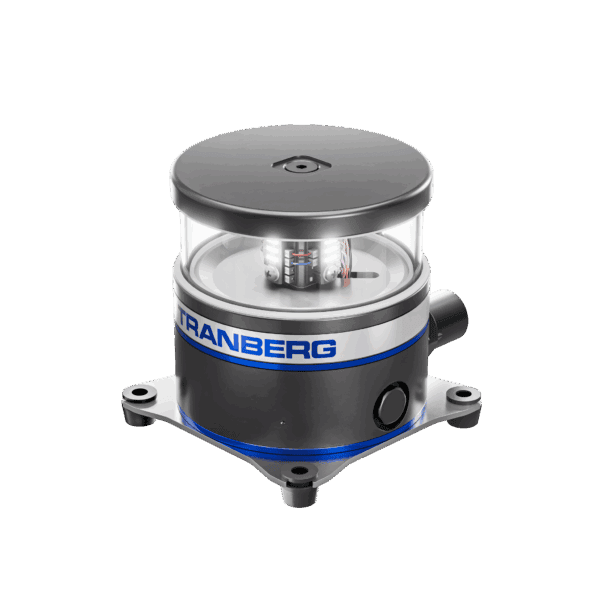

Compact LED navigation and signal light in anodised aluminium with glass lens and one monitored light source rated 100 000 h. Masthead, side, stern, all-round and signal lights for ships over 50 m and 20–50 m, 24 V DC, IP66/67, DNV MED approved. 33 part numbers – select by location and colour below.
Sealed LED navigation lantern for safe area: anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Duplex with two independent light sources. 13 part numbers – select by lantern type below.

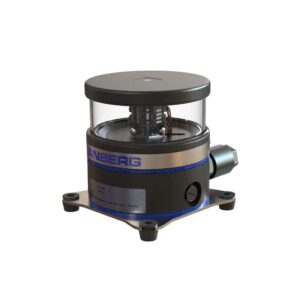

Sealed LED navigation lantern for safe area: anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Simplex with one light source, including morse and flashing signal lights. 16 part numbers – select by lantern type below.
Sealed LED navigation lantern certified for zone 2 and safe area (ATEX II 3G Ex nA IIC T4 Gc): anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Duplex with two independent light sources. 13 part numbers – select by lantern type below.
Sealed LED navigation lantern certified for zone 2 and safe area (ATEX II 3G Ex nA IIC T4 Gc): anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Simplex with one light source, including morse and flashing signal lights. 16 part numbers – select by lantern type below.
Small, robust navigation light for vessels 7–20 m: anodised seawater-resistant aluminium with through-coloured glass lens, IP56, Bay15d lamp 10 or 25 W at 12 or 24 V AC/DC, bulb reached from the top, direct connection in the lantern. DNV MED and ABS. 11 part numbers – masthead, side, stern, towing, all-round and additional signal lights.

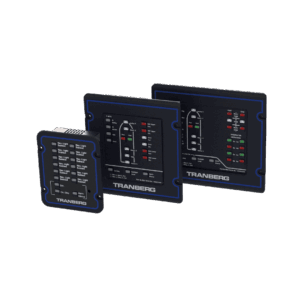

Navigation Lights Control Panels
TEF 4900 Commander Navigation Light System – panels, CPU and output modules
Scalable control and monitoring system for navigation and signal lights: operator panels, CPU and fused output modules for LED and filament lanterns, delivered to the vessel's specification. DNV and ABS approved. 21 parts – select by module type below.
Navigation Lights
TEF 2488 Panama Steering Light – blue canal steering light, 230 V AC
Fixed blue steering light for vessels over 100 m transiting the Panama Canal, St. Lawrence Seaway and Kiel Canal, as required by 35 CFR § 103.27. Watertight IP56 luminaire in anodised seawater-resistant aluminium, stainless steel and glass, 5 W at 230/240 V AC, 2 candela, −30 °C to +45 °C, estimated lifetime 100 000 hours. One part number: 2488 550.
Commander Utility Operator Panel
TEF 4500 Commander Utility Modules – gateway, relay output, I/O and Ex local panel
DIN-rail output and interface modules for the Commander Utility network: gateway to VDR/SCADA, 24-output relay module, 24 I/O module and Ex local helideck panel. 4 parts – select by function below.
Commander Utility Operator Panel
TEF 4500 Commander Utility Operator Panels – 21 to 53 buttons, helideck panels and foils
Custom-built, backlit operator panels for deck, floodlight, helideck, heating and pump control, 3 to 7 columns of buttons, plus helideck panels and replacement Lexan foils. 14 parts – select by panel size below.
Floodlights
TEF 2580 BlueLine Floodlight, 1st Generation (discontinued) – replaced by TEF 2580 LED 2.0
First generation BlueLine LED floodlight, 200 W / 20 000 lm or 300 W / 30 000 lm, 5000 K, narrow, medium, wide or oval beam, with or without DALI. Discontinued; part numbers and datasheet TPS6475 are kept for reference. Recommended replacement: TEF 2580 LED 2.0 Generation.
The DHR70N and DHR80 LED navigation lights from Den Haan Rotterdam are discontinued. Part numbers and DHR datasheets are kept here for reference and remaining spare parts; the recommended TRANBERG® replacements are the TEF 2870 brass lantern and the TEF 2880 LED lantern.
