Aviation Lighting & Control Systems for Helideck
Our Aviation solutions provide compliant, high-performance lighting and control systems for helidecks, both offshore and onshore, as well as hospitals and other critical infrastructure. From obstruction and perimeter lights to full Circle & H solutions, windsocks, and status lights, our systems ensure maximum safety and visibility. Built for harsh environments and mission-critical sites, they deliver reliable performance across energy facilities, civil aviation, and emergency installations worldwide.
- CAP437 and ICAO Annex 14
- Circle & H system
- Offshore and onshore
- Own factory in Norway
Product groups
Choose a product group
6 productsStatus Light
See the products →
2 productsCircle & H
See the products →
2 productsControl System
See the products →
2 productsFloodlights for Helidecks
R. STAHL Tranberg helideck floodlights deliver high-output, glare-controlled illumination for offshore and marine helidecks.
See the products →
2 productsObstruction Lights
See the products →
2 productsPerimeter Lights
See the products →
1 productWindsock
See the products →Helidecks
From the first drawing to the first landing
Perimeter, status and obstruction lights, floodlights, windsocks and the Tranberg IMT Circle & H system, integrated with a control system that is scalable, Modbus-ready and cyber-secure from the start.
How we help
More than the products
Project management
Sizing, lighting and heat loss calculations, documentation for class and commissioning.
Own factory
Designed, built and tested under one roof, with short delivery times and room for changes.
Datasheets and certificates
Datasheets, Ex certificates, declarations of conformity and STEP files are on every product page.
Talk to an engineer
Send us the drawings or the equipment list and we propose a solution, part numbers and documentation.
Red omni-directional LED obstruction light for cranes, masts and structures in safe areas: >32 cd to ICAO Annex 14 Vol. 1 Ch. 6 Type B, acid-proof stainless steel with red polycarbonate globe, max. 10 W, IP66. 230 V AC or 24 V AC/DC – select below.
Helideck perimeter light for safe areas: five LEDs in a polycarbonate globe on acid-proof stainless steel, >30 cd green to ICAO Annex 14 Vol. II and CAP 437, max. 10 W, IP66, under 150 mm high. Green in 100–230 V AC or 24 V AC/DC, and red in 100–230 V AC – select below.

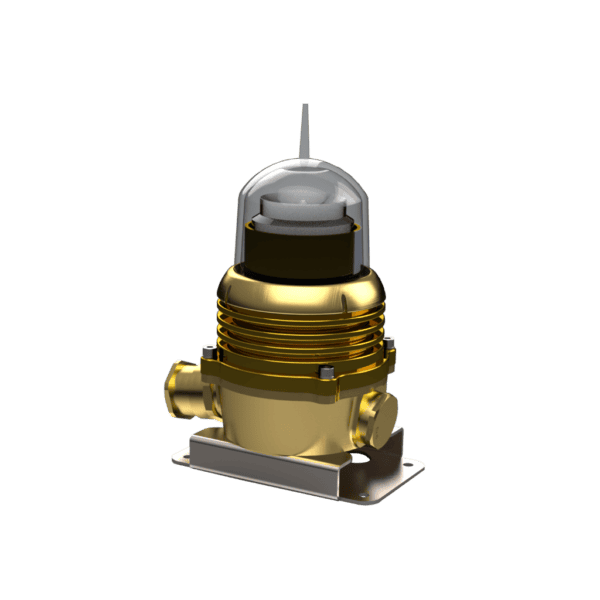

Explosion-protected red obstruction light in hot-forged brass with polycarbonate dome: Ex eb mb op is IIC T5 Gb, encapsulated electronics, IP66/67, −55 to +55 °C. 32 cd (ICAO Type B) or 10 cd (Type A), AC or 24 V DC, with IR LEDs for night vision on request. Six versions – select below.
Explosion-protected helideck perimeter light in hot-forged brass with glass dome: Ex eb mb op is IIC T5 Gb, encapsulated electronics, >30 cd green to ICAO Annex 14 and CAP 437, 4–5 W, IP66/67, −55 to +55 °C. 100–254 V AC or 24 V DC – select below.
Ready-to-install helideck lights control for safe areas: pre-wired IP66 enclosure with 8 outgoing circuits and a push-button panel for the bridge on RS-485, up to 7 panels. Dual power with automatic changeover to DNV F503, Naut-OSV bridge alarm, optional NMEA-0183 gateway. Part number 4500303.
Aviation

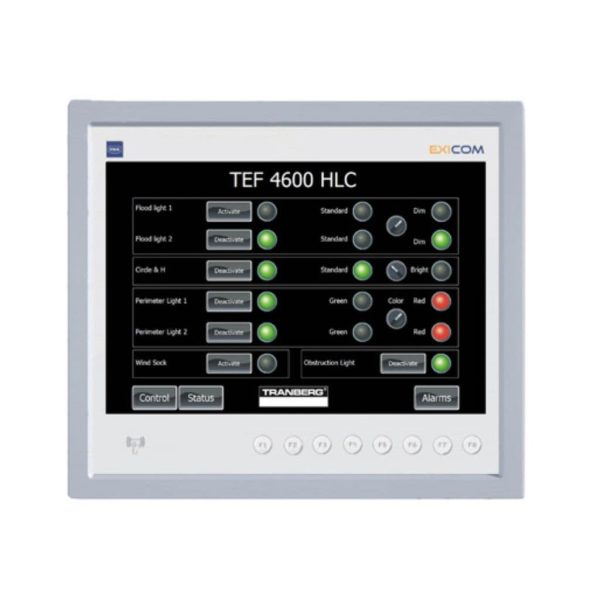

TEF 4600 Integrated Helideck Light Control – one cabinet for all helideck lights, Zone 1 or non-Ex
All helideck lighting controlled and supervised from one cabinet with a pre-programmed touch panel: perimeter, floodlights, Circle & H, obstruction, windsock and status lights. Dual 230 V AC supply with automatic changeover, Ethernet and Modbus TCP/IP, optional HMS and SCADA integration. Non-Ex or Zone 1 with EXicom MT-498 panel. Ten configurations – select below.

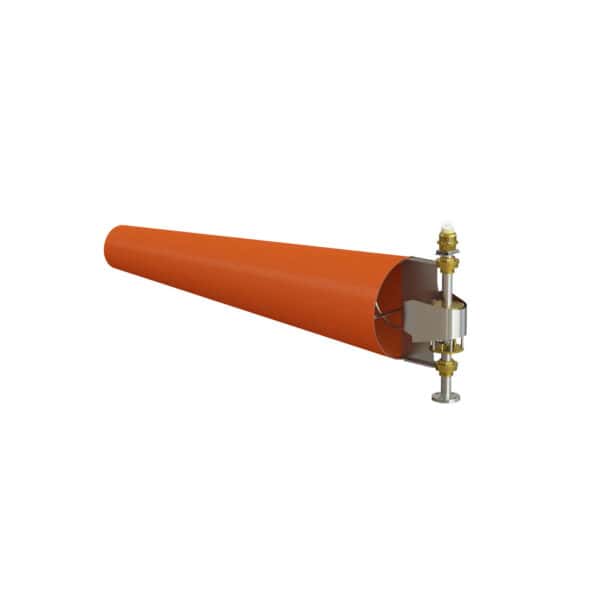

Helideck windsock in AISI 316L and brass with one spare sleeve, in four versions: without lights, with obstruction lights, internally lit, or with IR for night vision. Ex certified lit versions. 20 variants – select by lighting, size and voltage below.

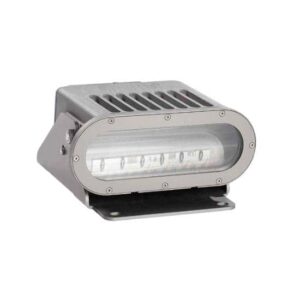

Explosion-protected LED helideck floodlight in marine-grade anodised aluminium: 2 400 lm, 17 500 cd, 40 W, IP66/67, DALI, Ex eb mb / Ex tb for zones 1, 2, 21 and 22. ICAO Annex 14, CAP 437 and NORSOK. 100–240 V AC or 24 V DC, low or high bracket – select below.
LED helideck floodlight for safe areas in marine-grade anodised aluminium: 2 400 lm, 17 500 cd, max. 40 W, 100–240 V AC, IP66, DALI, sealed for life. Same optics and housing as the Ex-certified TEF 9975. ICAO Annex 14, CAP 437 and NORSOK.

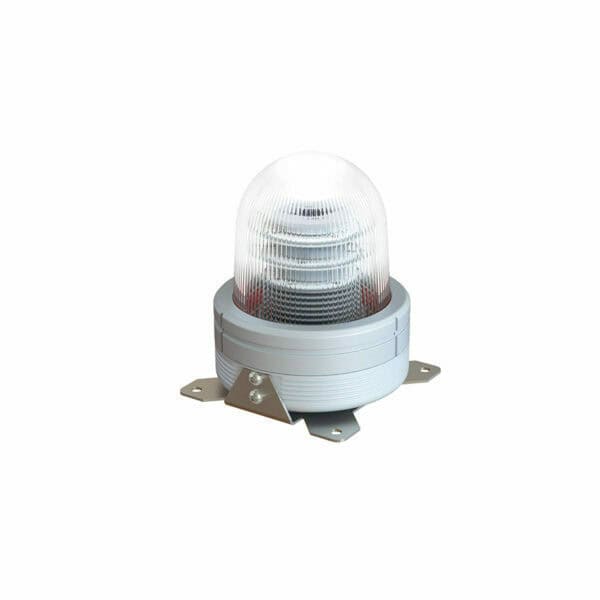

Flashing red status light system to CAP 437, NORMAM-27 and the MODU Code: main light min. 700 cd, low-dome repeater 16–60 cd, both fully monitored with our helideck control. Seawater-resistant aluminium and tempered glass, 16–32 V DC, IP66/67, NVG compatible, Ex db op is. Main or repeater – select below.

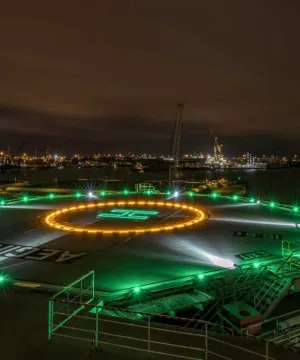

LED lighting system marking the TD/PM circle and the H on the helideck to CAP 437 and ICAO Annex 14. Sealed Ex fixtures (Zone 1) in marine-grade aluminium, 24 V DC, IP66/67, interlocking design and 60 % fewer holes in the deck. Stand-alone or integrated with TEF 4600.
