Marine · Navigation Lights Systems
Navigation Lights
Precision Navigation Lights Built to Excel in All Marine Conditions
TRANBERG® Navigation Lights offer unmatched reliability and clarity for vessels of all sizes. Designed for harsh environments—from arctic seas to tropical waters—these lights feature rugged, low-maintenance construction, through-colored glass lenses for long-lasting optics, and seamless integration with existing systems.
Read more
Available in LED and EX-protected models for all vessels ranging from small to large, they meet international standards and deliver consistent performance on every voyage.
- 17 products
- Contact us →
90° mounting bracket in stainless steel 316 for the TEF 2880 navigation light and the TEF 2785 BlueLine luminaire, with the TEF 2850/2870 hole pattern so it fits existing drillings when older lanterns are replaced.
Spare bracket in stainless steel 316 for mounting the TEF 2870 lantern on a 1" tube. 0.7 kg.
Navigation Lights
Set of PVC washers, Ø 32/10 × 1", insulating the TEF 2870 navigation light from its stainless steel mounting bracket.

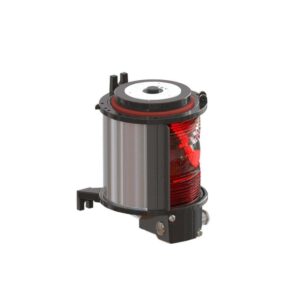

Explosion-protected navigation light for zone 2 and safe area (II 3G Ex nR IIC Gc T5): powder-coated aluminium with coloured glass lens, integrated terminal box, top-hinged for quick lamp change, IP56, −52 °C to +45 °C, B22 lamp 55 W (20–50 m) or 85 W (over 50 m). DNV MED, ATEX and IECEx. 9 part numbers – masthead, side, stern, Suez, towing and all-round lights.

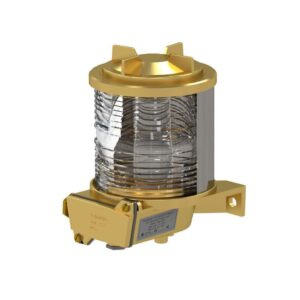

Cast brass navigation and signal light with through-coloured glass lens for vessels of 20–50 m and over 50 m. Masthead, side, stern, all-round and signal lights in 24 V, standard or Zone 2 Ex version. MED and ABS approved, 20 years warranty. 30 part numbers – select by location and colour below.
Compact LED navigation and signal light in anodised aluminium with glass lens and two independent light sources, 100 000 h each, so main and spare light sit in one housing. Masthead, side, stern, all-round and signal lights for ships over 50 m, 24 V DC, IP66/67, DNV MED approved. 25 part numbers – select by location and colour below.
Compact LED navigation and signal light in anodised aluminium with glass lens and one monitored light source rated 100 000 h. Masthead, side, stern, all-round and signal lights for ships over 50 m and 20–50 m, 24 V DC, IP66/67, DNV MED approved. 33 part numbers – select by location and colour below.
Sealed LED navigation lantern for safe area: anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Duplex with two independent light sources. 13 part numbers – select by lantern type below.
Sealed LED navigation lantern for safe area: anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Simplex with one light source, including morse and flashing signal lights. 16 part numbers – select by lantern type below.
Navigation Lights

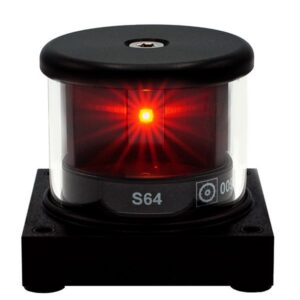

TEF 2890 K2W Navigation Light LED Simplex – Stern Suez 135°, red
Red 135° stern light in the TEF 2890 K2W LED Simplex series, for the Suez Canal transit requirement. 0.5 kg.
Sealed LED navigation lantern certified for zone 2 and safe area (ATEX II 3G Ex nA IIC T4 Gc): anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Duplex with two independent light sources. 13 part numbers – select by lantern type below.
Sealed LED navigation lantern certified for zone 2 and safe area (ATEX II 3G Ex nA IIC T4 Gc): anodised aluminium, stainless steel AISI 316 and borosilicate glass, IP68, 24 V DC, 1–10 W, visibility 3–6 nm, 10 m flying lead, 100 000 h lifetime, DNV MED. Simplex with one light source, including morse and flashing signal lights. 16 part numbers – select by lantern type below.
Small, robust navigation light for vessels 7–20 m: anodised seawater-resistant aluminium with through-coloured glass lens, IP56, Bay15d lamp 10 or 25 W at 12 or 24 V AC/DC, bulb reached from the top, direct connection in the lantern. DNV MED and ABS. 11 part numbers – masthead, side, stern, towing, all-round and additional signal lights.
Navigation Lights
TEF 2488 Panama Steering Light – blue canal steering light, 230 V AC
Fixed blue steering light for vessels over 100 m transiting the Panama Canal, St. Lawrence Seaway and Kiel Canal, as required by 35 CFR § 103.27. Watertight IP56 luminaire in anodised seawater-resistant aluminium, stainless steel and glass, 5 W at 230/240 V AC, 2 candela, −30 °C to +45 °C, estimated lifetime 100 000 hours. One part number: 2488 550.
Navigation Lights
TEF 2882 K2W LED Navigation Light (discontinued) – replaced by TEF 2880
Compact LED navigation light with K2W S64 light source in a Tranberg BlueLine box, simplex and duplex, for vessels over 20 m. The series is discontinued; part numbers and datasheet are kept for reference, and the recommended replacement is the TEF 2880 Simplex or Duplex.
The DHR70N and DHR80 LED navigation lights from Den Haan Rotterdam are discontinued. Part numbers and DHR datasheets are kept here for reference and remaining spare parts; the recommended TRANBERG® replacements are the TEF 2870 brass lantern and the TEF 2880 LED lantern.
