Raychem Heat Tracing Cables
RAYCHEM heat tracing cables are trusted worldwide for reliable freeze protection and process temperature control. Using advanced self-regulating and power-limiting technology, these cables automatically adjust their heat output to changing conditions — ensuring energy efficiency, safety and consistent performance.
Read more
From standard freeze protection to high-temperature and steam-cleaning applications, these solutions are built for demanding environments and certified for use in hazardous areas. Their robust, cut-to-length design makes installation simple, while proven durability and global industry approval make them the preferred choice for operators who need long-lasting, efficient heat tracing.
- 7 products
- Contact us →
Raychem Heat Tracing Cables

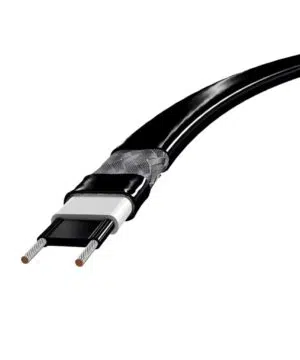

Raychem BTV2-CT Self-Regulating Heating Cable – 9 to 29 W/m, Ex zone 1
Self-regulating heating cable for freeze protection and temperature maintenance of pipes and vessels in hazardous areas: 3BTV to 10BTV (9–29 W/m at 10 °C), 230 V, fluoropolymer outer jacket, max. maintain temperature 65 °C and intermittent exposure up to 85 °C. ATEX and IECEx Ex eb IIC T6 Gb. 4 part numbers – select by output below.
Raychem Heat Tracing Cables

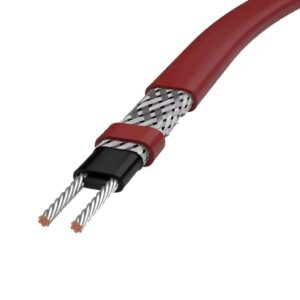

Raychem HTV2-CT Self-Regulating Heating Cable – 9 to 92 W/m, Ex zone 1
High-temperature self-regulating heating cable for process maintenance up to 205 °C and exposure up to 260 °C: 3HTV to 28HTV (9–92 W/m at 10 °C), 230 V, 5 × 11 mm, HPR heating core with metallic braid and fluoropolymer outer jacket. ATEX and IECEx Ex eb mb IIC T6…T2 Gb. 8 part numbers – select by output below.
Raychem Heat Tracing Cables
Raychem QTVR2-CT Self-Regulating Heating Cable – 38 to 64 W/m, Ex zone 1
High-output self-regulating heating cable for freeze protection and temperature maintenance of large pipes and vessels in hazardous areas: 10QTVR to 20QTVR (38–64 W/m at 10 °C), 230 V, fluoropolymer outer jacket, max. maintain temperature 110 °C. ATEX and IECEx Ex eb IIC T4 Gb. 3 part numbers – select by output below.
Raychem Heat Tracing Cables
Raychem TLT self-regulating heating cable 5 × 15 – 90 W/m, 240 V, for under-deck and walkway heating
Chemelex RAYCHEM TLT self-regulating heating cable, 90 W/m at 220–240 V, 5 × 15 mm, for winterization of metal walkways and decks on vessels in non-hazardous areas. Sold per metre.
Raychem Heat Tracing Cables
Raychem VPL2-CT Power-Limiting Heating Cable – 15 to 61 W/m, high temperature, Ex zone 1
Power-limiting heating cable for high-temperature process maintenance up to 235 °C and exposure up to 260 °C: 5VPL to 20VPL (15–61 W/m), 230 V, 5 × 11 mm, fluoropolymer outer jacket, low start-up current and cut-to-length installation with overlap capability. ATEX and IECEx Ex eb IIC Gb. 4 part numbers – select by output below.
Raychem Heat Tracing Cables
Raychem XTVR2-CT Self-Regulating Heating Cable – 9 to 63 W/m, Ex zone 1
Self-regulating heating cable for process temperature maintenance in demanding industrial applications: 3XTVR to 20XTVR (9–63 W/m at 10 °C), 230 V, 5 × 11 mm, fluoropolymer outer jacket, max. maintain temperature 150 °C and intermittent exposure up to 250 °C. ATEX and IECEx Ex eb IIC Gb with stabilised design T-rating. 7 part numbers – select by output below. Replaces the earlier XTV2-CT-T3 sizes.
Raychem Heat Tracing Cables
Raychem KTV2-CT Self-Regulating Heating Cable (not stocked) – see XTVR2-CT
Self-regulating heating cable with fluoropolymer outer jacket for process temperature maintenance up to 150 °C and intermittent exposure up to 250 °C, approved for hazardous areas. No longer part of our stocked range; the closest current alternative is XTVR2-CT. Available on request for projects.
Choosing the right self-regulating heating cable
Each RAYCHEM cable type is optimised for a different temperature range and application. As a self-regulating (or power-limiting) cable, it varies its heat output along its length in response to the surrounding temperature, so it cannot overheat or burn out — even when overlapped.
- BTV – Freeze protection and low-temperature maintenance up to 65°C. The everyday choice for pipes and vessels.
- QTVR – Higher output than BTV for freeze protection and process maintenance up to 110°C, ideal for larger pipes with greater heat loss.
- HTV – High-power output for demanding process maintenance at elevated temperatures.
- KTV – Process maintenance up to 150°C on pipes and vessels that require steam cleaning.
- XTVR – Robust performance for high-temperature applications and frequent steam cleaning.
- VPL – A power-limiting cable for high-temperature process maintenance, delivering high output while reducing the number of circuits required.
All cables are approved for hazardous areas (Zone 1, 2, 21 and 22) and supplied cut-to-length. If you are unsure which type suits your application, contact our team for support with cable selection and system design.
