Raychem XTVR2-CT Self-Regulating Heating Cable – 9 to 63 W/m, Ex zone 1

Self-regulating heating cable for process temperature maintenance in demanding industrial applications: 3XTVR to 20XTVR (9–63 W/m at 10 °C), 230 V, 5 × 11 mm, fluoropolymer outer jacket, max. maintain temperature 150 °C and intermittent exposure up to 250 °C. ATEX and IECEx Ex eb IIC Gb with stabilised design T-rating. 7 part numbers – select by output below. Replaces the earlier XTV2-CT-T3 sizes.

Part numbers7
IECEx ProtectionII 2 G Ex 60079-30-1 eb IIC T* Gb
Voltage230 V
PDFDatasheetSee part numbers
SKU RAYCHEM-XTVR2-CTEnergy › Heat Tracing Solutions › Raychem Heat Tracing Cables

Common specifications

Dimension (mm)
5 × 11
Heating technology
Self-regulating
Voltage
230 V
Outer jacket
Fluoropolymer
IECEx Protection
II 2 G Ex 60079-30-1 eb IIC T* Gb
Max. maintain temperature
150 °C
Max. exposure temperature
250 °C
Weight
0.164

Documents 4

Datasheet

User Manual

Product Certificate 2

Variants and part numbers

Part number Rated PowerCable type Files
336556TEF 50291367 9 W/m3XTVR2-CT
336557TEF 50291368 16 W/m5XTVR2-CT
336558TEF 50291369 25 W/m8XTVR2-CT
336552TEF 50291370 32 W/m10XTVR2-CT
336553TEF 50291371 38 W/m12XTVR2-CT
336554TEF 50291372 47 W/m15XTVR2-CT
336555TEF 50291373 63 W/m20XTVR2-CT

Click a column heading to sort.

Accessories for this series

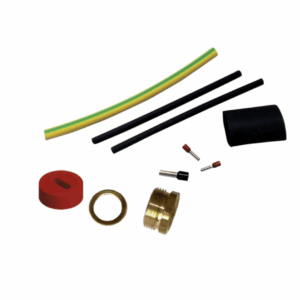

Flexible electrical wiring and components for industrial automation and control systems. Connection kit Pipe Mounting for Raychem Cables: 3BTV-5BTV-10QTVR-15QTVR-XTVR-VPL 5x11 - w/Terminatio Placeholder Connection kit Wall Mounting for Raychem Cables: 3BTV-5BTV-10QTVR-15QTVR-XTV-VPL 5x11 - w/Terminatio Placeholder Raychem S-40 In-Line Splice Kit for XTVR, HTV and VPL heating cablesHeat-shrink in-line splice for the high-temperature Raychem cables XTVR, KTV, HTV and VPL. Placeholder Raychem E-40 End Seal Kit for XTVR, HTV and VPL heating cables – heat shrinkHeat-shrink end seal kit for the high-temperature Raychem cables XTVR, HTV, KTV and VPL. Rated −60 °C to +2… Placeholder Raychem E-150 End Seal – universal, below insulation, cold appliedCold-applied universal end seal for BTV, QTVR and XTVR heating cables, fitted below the insulation. Ex eb I…

Related series

Flexible rubber-insulated electrical cable with stranded metal conductors for industrial wiring and electrical installations. Raychem HTV2-CT Self-Regulating Heating Cable – 9 to 92 W/m, Ex zone 1High-temperature self-regulating heating cable for process maintenance up to 205 °C and exposure up to 260 … High-quality audio cable with braided silver shielding, brown leather accents, and durable connectors for professional sound systems and audio equipment. Raychem QTVR2-CT Self-Regulating Heating Cable – 38 to 64 W/m, Ex zone 1High-output self-regulating heating cable for freeze protection and temperature maintenance of large pipes … Flexible industrial power cable with stranded copper conductors for electrical wiring and transmission. Raychem BTV2-CT Self-Regulating Heating Cable – 9 to 29 W/m, Ex zone 1Self-regulating heating cable for freeze protection and temperature maintenance of pipes and vessels in haz… High-voltage electrical instrument with metal pipes and connection ports for industrial electrical systems. TEF 1058 Heat Trace Junction Box, Pipe Mounted – Ex eb, small and largeOn-line heat trace junction box in stainless steel AISI 316L, mounted directly on the traced pipe with a tr…

Key Benefits:

  • Extreme temperature resistance: Operates reliably up to 150°C (302°F) and withstands intermittent exposure to 250°C (482°F).
  • Superior corrosion protection: The fluoropolymer outer jacket shields the cable from harsh chemicals and corrosive environments.
  • High power output: Ideal for high-heat-loss applications and maintaining process temperatures in demanding conditions.
  • Hazardous area approved: Safe for use in hazardous locations, including those with flammable gases or dust.

The RAYCHEM XTVR cable delivers exceptional performance and durability, making it the ideal choice for industries requiring robust, reliable heat tracing solutions.

Heating technology

Self-regulating
Voltage

230 V
Outer jacket

Fluoropolymer
IECEx Protection

II 2 G Ex 60079-30-1 eb IIC T* Gb
Max. maintain temperature

150 °C
Max. exposure temperature

250 °C
