Ex-certified aluminium control cabinet supplying and monitoring the TEF 9980 main and repeater status lights, 100–240 V AC, IP66/67, for installation in Zone 1 or Zone 2.
Powder-coated sheet steel control cabinet for safe-area control rooms, supplying and monitoring the TEF 9980 main and repeater status lights, 100–240 V AC. 18 kg.
Ex eb junction box in stainless steel AISI 316L, pre-configured for connecting one TEF 9980 status light. TEF 1058 size 20, IP66/67, IECEx and ATEX.
Status Light
Junction Box for TEF 9980 status light – single lamp plus connection to next lamp, TEF 1058 size 25
Ex eb junction box in stainless steel AISI 316L, pre-configured for one TEF 9980 status light with the supply looped on to the next lamp. TEF 1058 size 25, IP66/67, IECEx and ATEX.

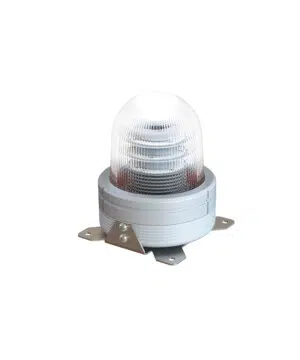

Flashing red status light system to CAP 437, NORMAM-27 and the MODU Code: main light min. 700 cd, low-dome repeater 16–60 cd, both fully monitored with our helideck control. Seawater-resistant aluminium and tempered glass, 16–32 V DC, IP66/67, NVG compatible, Ex db op is. Main or repeater – select below.
Small Ex-certified outdoor cabinet connected to the TEF 9980 control panel, giving remote control and fault indication of up to two main lights and two repeater lights from Zone 1, Zone 2 or safe area. IECEx and ATEX, CAP 437.
