Ex de switch box in brushed stainless steel AISI 316L for isolating heat trace cables during maintenance: one lockable 16 A safety switch for one or two parallel heating cables, or three switches for three separate circuits. ATEX and IECEx, IP66. 3 part numbers – select below.
End termination for self-regulating heating cables in stainless steel AISI 316L with an indicator lamp (12–254 V AC/DC) that shows the circuit is live. Built on the TEF 1058 junction box, ATEX and IECEx Ex eb IIC T5 Gb, IP66, zone 1, zone 2 and safe area. Two part numbers: pipe mounted or wall mounted.

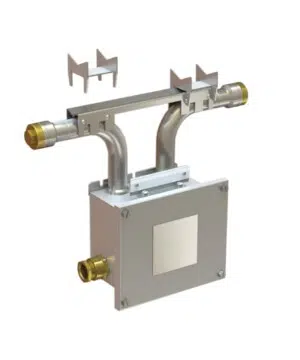

On-line heat trace junction box in stainless steel AISI 316L, mounted directly on the traced pipe with a transition unit for the heating cable. Small box for 2 heating cables, large box for 3, drilled or complete with glands. ATEX and IECEx Ex eb IIC T5 Gb, IP66/67. 8 part numbers – select by size below.

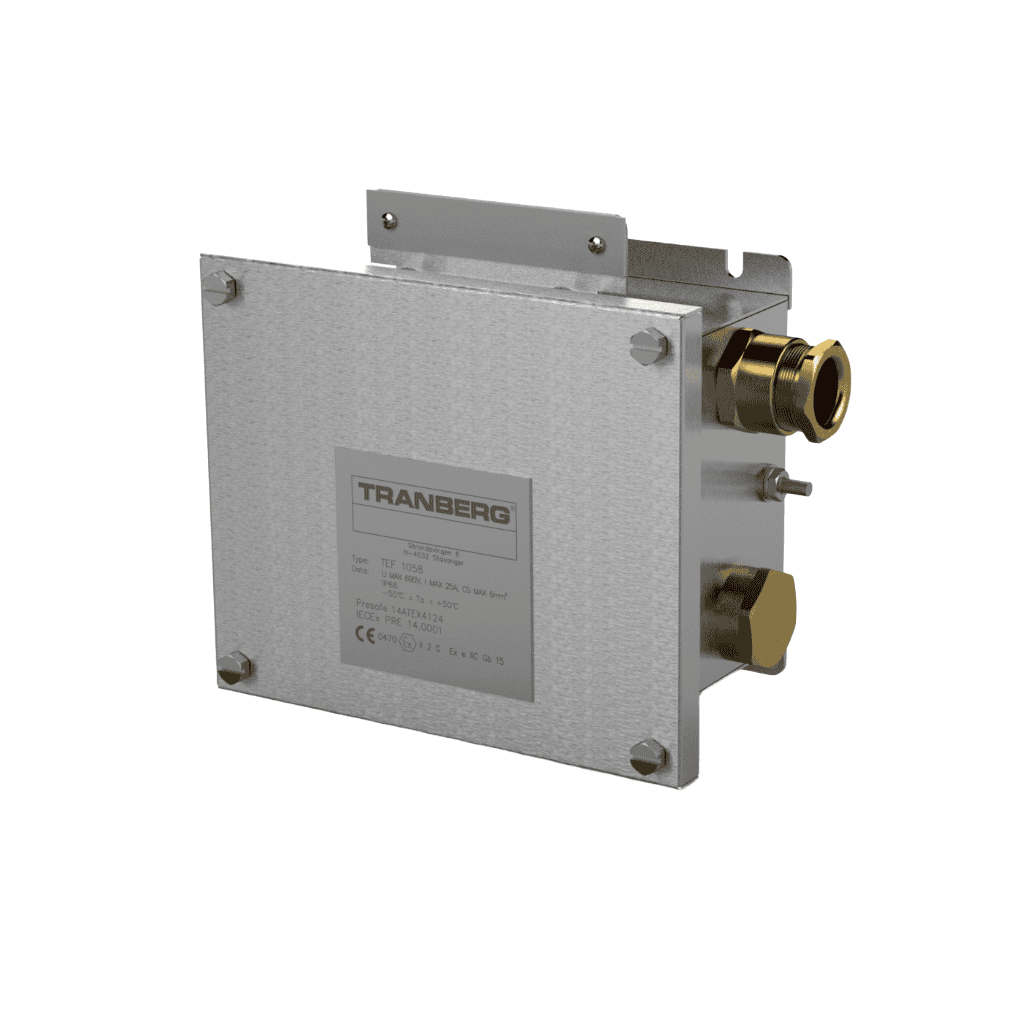

Off-line heat trace junction box in stainless steel AISI 316L for wall mounting, with the heating cables brought in through connection kits and flexible conduit. Small box for 2 heating cables, large box for 3, drilled or complete with glands. ATEX and IECEx Ex eb IIC T5 Gb, IP66/67. 9 part numbers – select by size below.

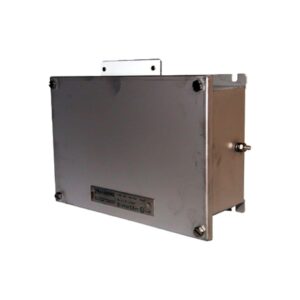

Pre-equipped Ex eb distribution box in stainless steel AISI 316L for local field power to up to five heat tracing circuits: ten terminals linked 5+5, PE earth bar, entries with temporary plugs and label kit. Terminals in 6, 10 or 16 mm². ATEX and IECEx, IP66/67. 3 part numbers – select by terminal size below.
Heat Tracing Solutions
TEF 9204 Stair Heater Enclosure 161 × 662 mm – 200 W, for QTVR heating cable, AISI 316L
Acid-proof stainless steel enclosure mounted under an outdoor step, holding six loops of QTVR self-regulating heating cable for about 200 W per step. Heating cable ordered separately.
Heat Tracing Solutions
TEF 9204 Stair Heater Enclosure 161 × 762 mm – 230 W, for QTVR heating cable, AISI 316L
Acid-proof stainless steel enclosure mounted under an outdoor step, holding six loops of QTVR self-regulating heating cable for about 230 W per step. Heating cable ordered separately.
Energy
TEF 9179 Connection Kit, pipe mounted – Raychem heating cables 5 × 11 / 5 × 15 mm, hot or cold
Connection kit for Raychem self-regulating heating cables into the pipe mounted TEF 1058 heat trace junction box: brass compression nut M28×1 with silicone grommet and AISI 316 washer, with Raychem C25 termination in hot (heat shrink) or cold-applied version, or without. 7 part numbers – select by cable size and termination below.
Heat Tracing Solutions
TEF 9179 Connection Kit, wall mounted – Raychem heating cables 5 × 11 / 5 × 15 mm, hot or cold
Connection kit for Raychem self-regulating heating cables into the wall mounted TEF 1058 heat trace junction box: transition unit M25 with cladding exit plate, silicone grommets, hose adaptors and M25 gland, with Raychem C25 termination in hot (heat shrink) or cold-applied version, or without. 7 part numbers – select by cable size and termination below.
