TRANBERG®·Raychem Heat Tracing Cables

Raychem HTV2-CT Self-Regulating Heating Cable – 9 to 92 W/m, Ex zone 1

Name: Raychem HTV2-CT Self-Regulating Heating Cable 9–92 W/m, 205 °C | R. STAHL Tranberg
SKU: RAYCHEM-HTV2-CT

High-temperature self-regulating heating cable for process maintenance up to 205 °C and exposure up to 260 °C: 3HTV to 28HTV (9–92 W/m at 10 °C), 230 V, 5 × 11 mm, HPR heating core with metallic braid and fluoropolymer outer jacket. ATEX and IECEx Ex eb mb IIC T6…T2 Gb. 8 part numbers – select by output below.

Part numbers8

IECEx ProtectionII 2 G Ex eb mb 60079-30-1 IIC T6…T2 Gb

Voltage230 V

PDFDatasheet See part numbers

SKU RAYCHEM-HTV2-CTEnergy › Heat Tracing Solutions › Raychem Heat Tracing Cables

Common specifications

Dimension (mm): 5 × 11
Heating technology: Self-regulating
Voltage: 230 V
Outer jacket: Fluoropolymer
IECEx Protection: II 2 G Ex eb mb 60079-30-1 IIC T6…T2 Gb
Max. maintain temperature: 205 °C
Max. exposure temperature: 260 °C
Weight: 0.17

Documents 2

User Manual 2

Variants and part numbers

Rated Power Cable type

Part number	Rated Power	Cable type
`325293`TEF 50291240	9 W/m	3HTV2-CT
`325294`TEF 50291241	16 W/m	5HTV2-CT
`336551`TEF 50291242	25 W/m	8HTV2-CT
`336543`TEF 50291243	32 W/m	10HTV2-CT
`336544`TEF 50291244	38 W/m	12HTV2-CT
`336546`TEF 50291245	48 W/m	15HTV2-CT
`336548`TEF 50291246	64 W/m	20HTV2-CT
`336550`TEF 50291247	92 W/m	28HTV2-CT

Click a column heading to sort.

Accessories for this series

Flexible electrical wiring and components for industrial automation and control systems.

Connection kit Pipe Mounting for Raychem Cables: 3BTV-5BTV-10QTVR-15QTVR-XTVR-VPL 5x11 - w/Terminatio

Connection kit Wall Mounting for Raychem Cables: 3BTV-5BTV-10QTVR-15QTVR-XTV-VPL 5x11 - w/Terminatio

Raychem S-40 In-Line Splice Kit for XTVR, HTV and VPL heating cablesHeat-shrink in-line splice for the high-temperature Raychem cables XTVR, KTV, HTV and VPL.

Raychem E-40 End Seal Kit for XTVR, HTV and VPL heating cables – heat shrinkHeat-shrink end seal kit for the high-temperature Raychem cables XTVR, HTV, KTV and VPL. Rated −60 °C to +2…

Raychem E-150 End Seal – universal, below insulation, cold appliedCold-applied universal end seal for BTV, QTVR and XTVR heating cables, fitted below the insulation. Ex eb I…

Related series

High-voltage cable with protective insulation and braided shielding for electrical safety and durability.

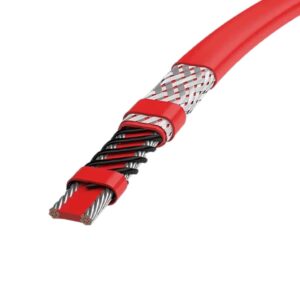

Raychem XTVR2-CT Self-Regulating Heating Cable – 9 to 63 W/m, Ex zone 1Self-regulating heating cable for process temperature maintenance in demanding industrial applications: 3XT…

Flexible fire-resistant electrical cable with steel braid shielding and red outer jacket, used in industrial wiring applications.

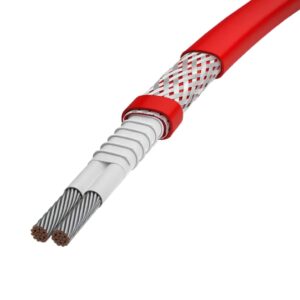

Raychem VPL2-CT Power-Limiting Heating Cable – 15 to 61 W/m, high temperature, Ex zone 1Power-limiting heating cable for high-temperature process maintenance up to 235 °C and exposure up to 260 °…

High-voltage electrical instrument with metal pipes and connection ports for industrial electrical systems.

TEF 1058 Heat Trace Junction Box, Pipe Mounted – Ex eb, small and largeOn-line heat trace junction box in stainless steel AISI 316L, mounted directly on the traced pipe with a tr…

Description
Specifications

Key Benefits:

Extreme temperature resistance: Operates continuously up to 205°C (400°F) and withstands maximum exposure temperatures of 260°C (500°F).
High power output: Delivers exceptional heat transfer for efficient temperature control in demanding applications.
Durable construction: An HPR heating core, pressure-extruded insulation, metallic braid and fluoropolymer outer jacket ensure long-lasting performance.
Versatility: Eight wattage levels and easy installation allow cost-effective, flexible heat-trace designs.

The RAYCHEM HTV cable is the ideal solution for industries requiring a robust, high-performance heat tracing system capable of withstanding extreme conditions.

Heating technology	Self-regulating
Voltage	230 V
Outer jacket	Fluoropolymer
IECEx Protection	II 2 G Ex eb mb 60079-30-1 IIC T6…T2 Gb
Max. maintain temperature	205 °C
Max. exposure temperature	260 °C
