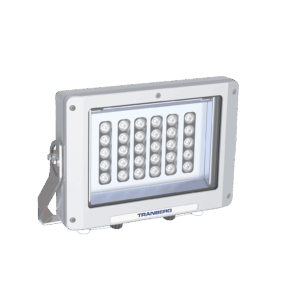

The TRANBERG® BlueLine floodlight TEF 2581 5000 lm is a compact LED floodlight for area lighting on ships: deck areas, rescue zones, walkways, crane booms and derricks, and for lighting docks, fishing gear and other equipment within about 20 metres of the vessel. It is the smaller of the two TEF 2581 sizes and is mainly used for smaller areas and smaller vessels. Seawater-resistant aluminium housing powder coated to corrosion class C5M, glass front, AISI 316L bracket, IP66/67, sealed for life. 27 part numbers: 2200 K, 4000 K or 5000 K, narrow, medium or wide beam, 200–240 V AC or 18–32 V DC, standard or DALI.
Application
- Area lighting on ships: deck areas, rescue zones, walkways, crane booms, derricks
- Lighting of docks, fishing gear and any other area or equipment onboard or near the ship (about 20 m distance)
- Mainly for smaller areas and/or smaller ships; suitable for harsh environments
Features and benefits
- Lightweight, approx. 4.8 kg with mounting bracket
- Plug & play: M25 QPD quick plug for cables up to 2.5 mm², fast and easy installation
- Corrosion resistant, uniform light distribution, maintenance free and sealed for life
- Surge protected LED driver: 6 kV differential mode, 10 kV common mode
- DALI version available for dimming and control
Technical data (TPS7332)
| Material | Seawater-resistant aluminium, powder coated (corrosion class C5M), glass, AISI 316L bracket |
|---|---|
| Input voltage | 200–240 V AC or 18–32 V DC |
| Light source and output | LED, 5000 lm (4000 K and 5000 K), 4400 lm (2200 K), CRI > 70 |
| Light distribution | Narrow, medium or wide |
| Power consumption | 40 W |
| Ingress protection | IP66/67 |
| Cable entries | 1 × M25 QPD plug for cables up to 2.5 mm², 1 × M25 stopping plug |
| Operating temperature | −40 °C to +55 °C |
| Lifetime | > 120 000 h at 80 % load |
| Dimensions and weight | 301 × 212 × 126 mm, approx. 4.8 kg with bracket (drawing 250A120077) |
| Circuit loading | Max. 13 lamps on a 16 A B-curve breaker, 22 lamps on a 16 A C-curve breaker; no through-wiring in series at 24 V DC |
Approvals
- CE, RoHS
- Datasheet TPS7332 and the 3D model (STEP) are listed above the table
Selecting the right floodlight
Pick the colour temperature first: 2200 K for warm light on accommodation decks and where glare and light pollution should be kept low, 4000 K for general deck lighting and 5000 K for work areas and the highest output. Then choose narrow, medium or wide light distribution depending on mounting height and the area to be lit, and the DALI version when the lights are to be dimmed or controlled centrally. For larger areas see the TEF 2581 10 000 lm and the TEF 2580 LED 2.0 Generation with 30 000 lumen.
