TEF 2580 LED 2.0 Generation – BlueLine Floodlight, 30 000 lm, 2200 K to 5000 K
Tef 2580 led 2. 0 generation – blueline floodlight, 30 000 lm, 2200 k to 5000 k - image 2
Tef 2580 led 2. 0 generation – blueline floodlight, 30 000 lm, 2200 k to 5000 k - image 3
Tef 2580 led 2. 0 generation – blueline floodlight, 30 000 lm, 2200 k to 5000 k - image 4
TRANBERG®·Floodlights

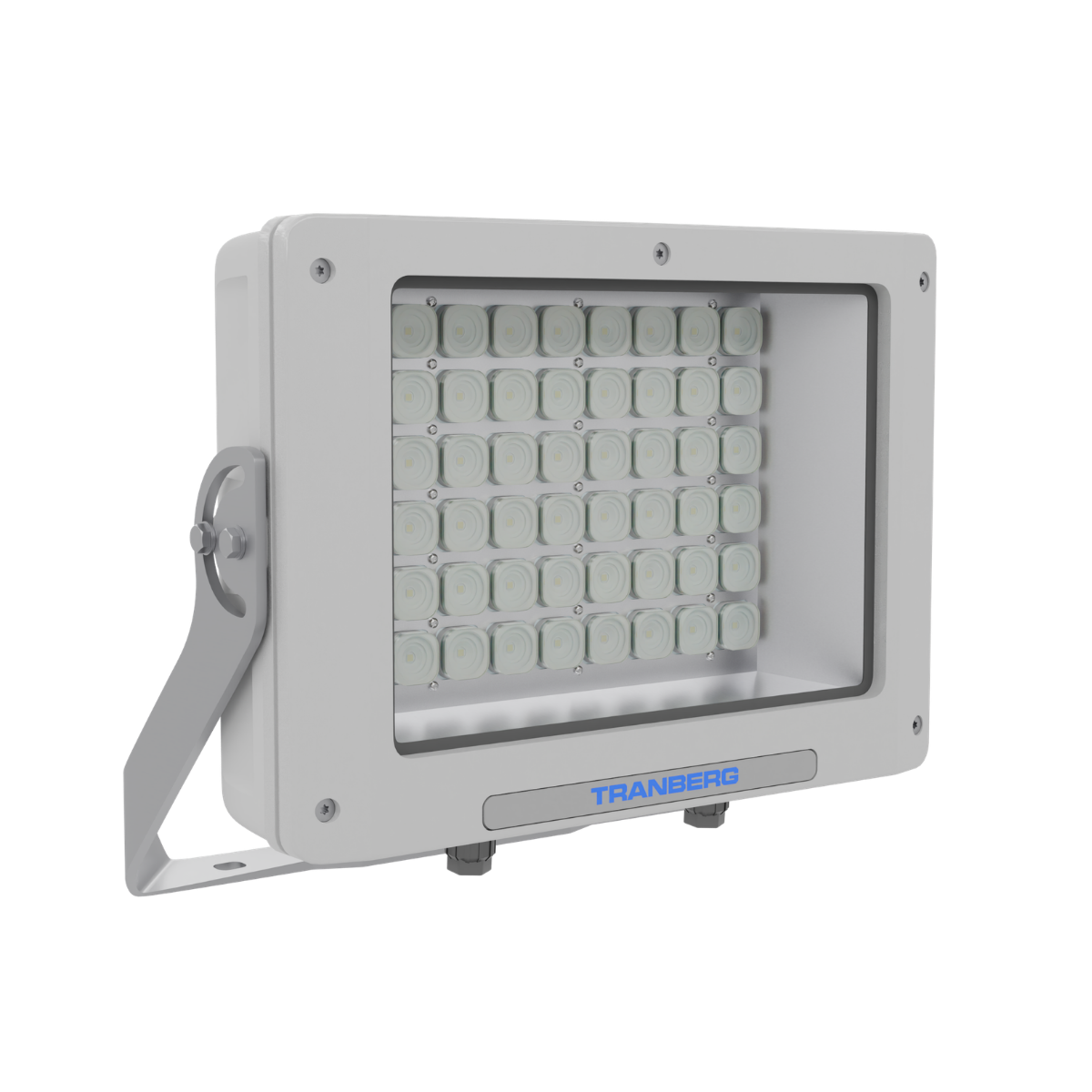

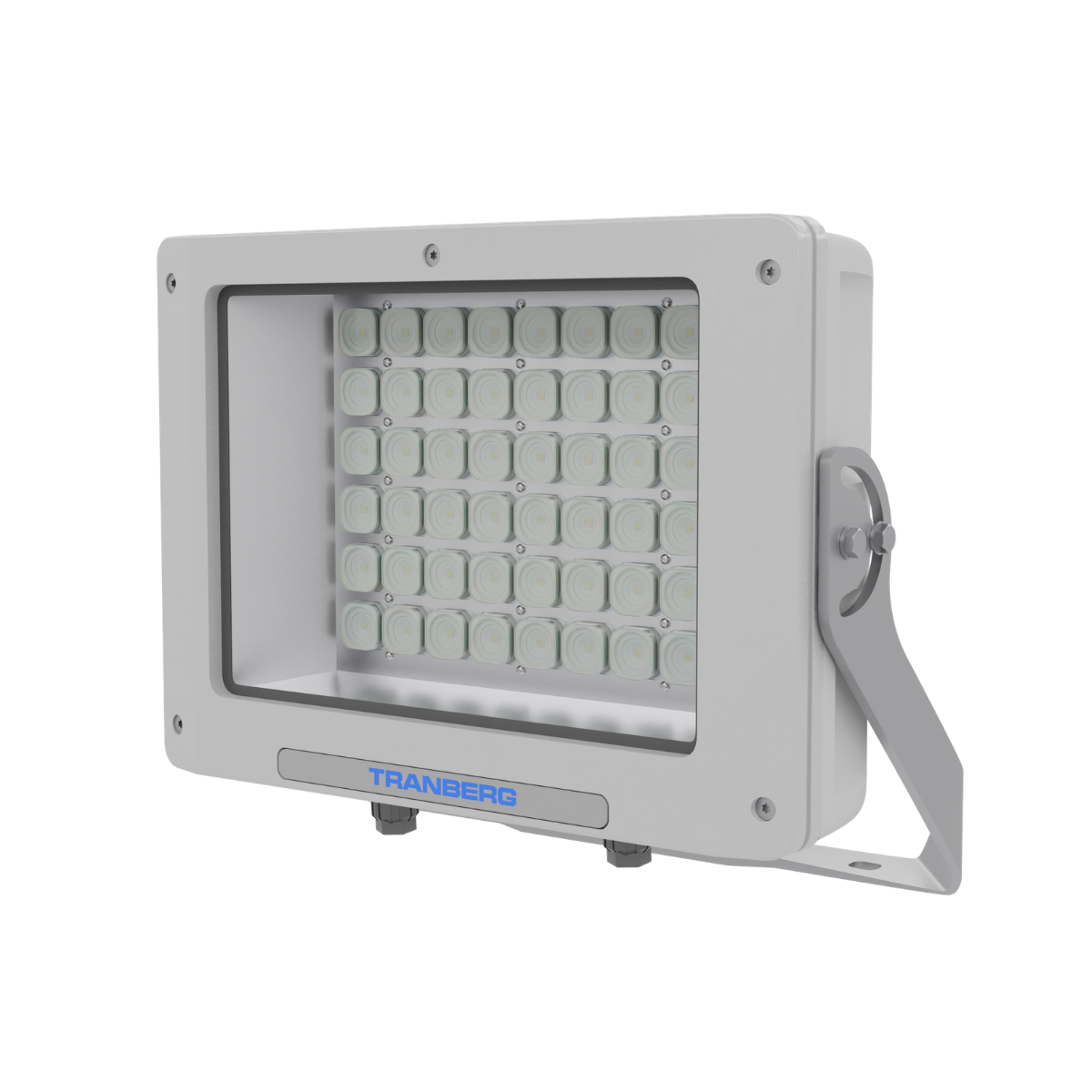

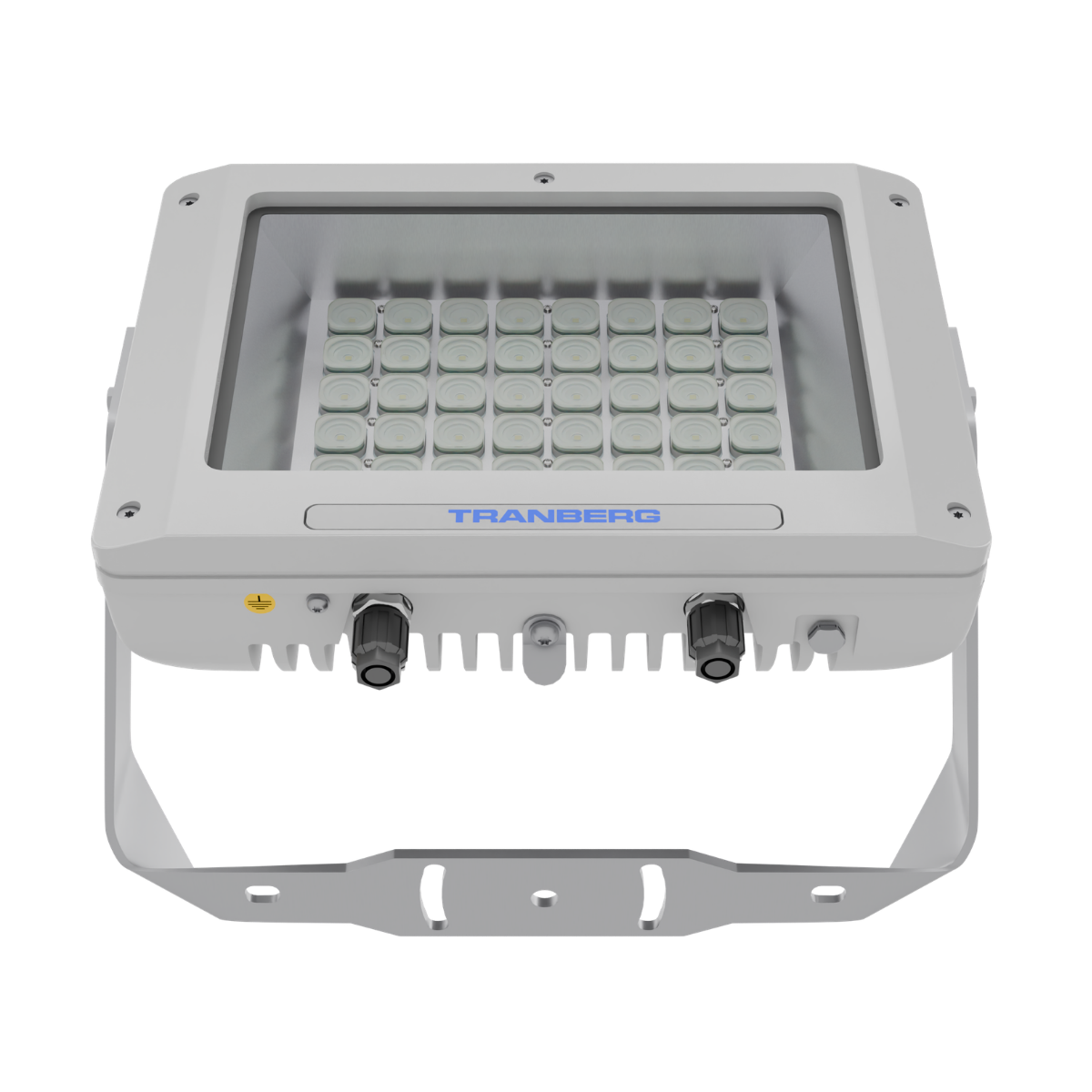

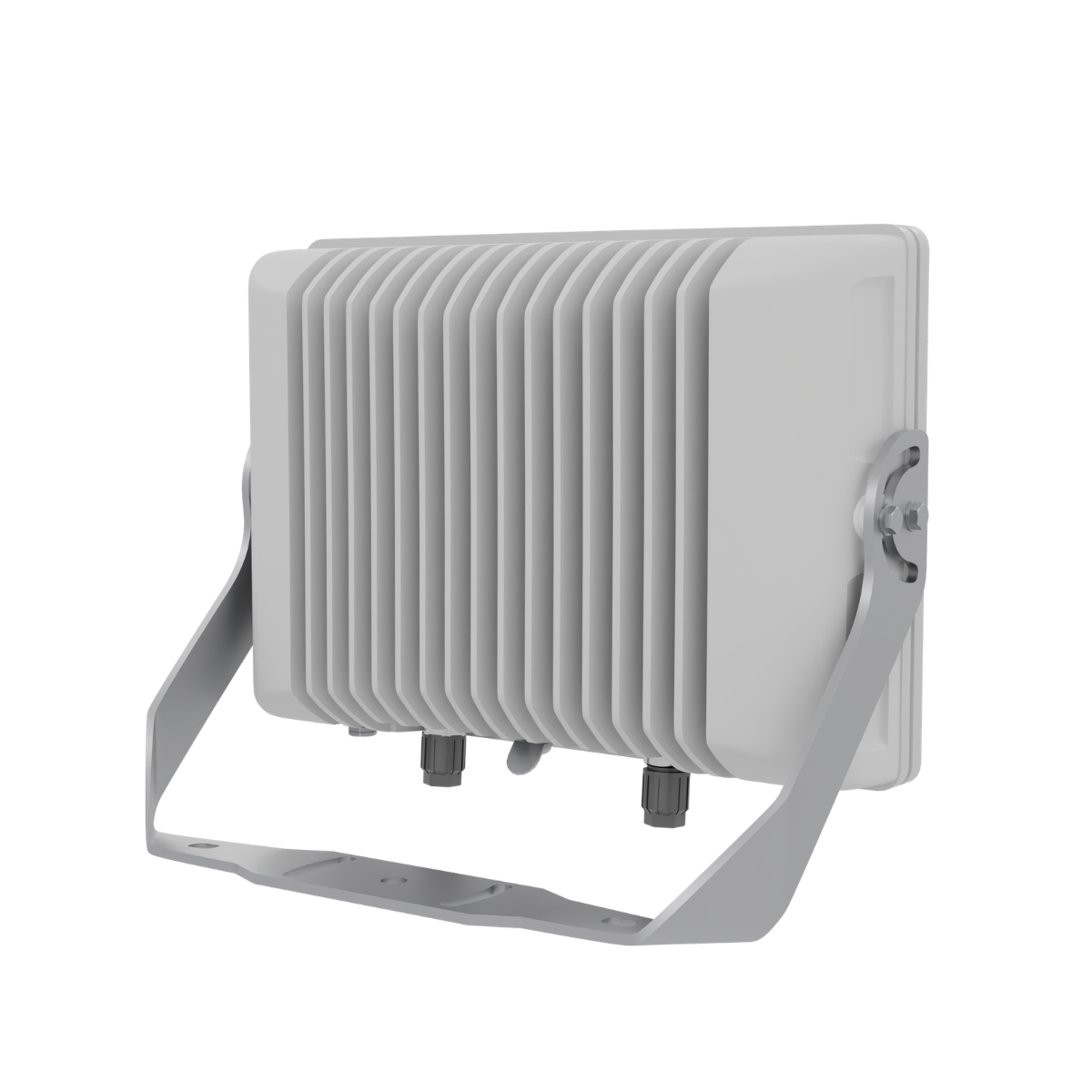

TEF 2580 LED 2.0 Generation – BlueLine Floodlight, 30 000 lm, 2200 K to 5000 K

LED floodlight for area lighting on vessels: typ. 30 000 lumen at max. 220 W, IP66/67, seawater-resistant C5M powder-coated aluminium housing with glass front, DALI included and Phoenix QPD quick plugs. Narrow, medium or wide light distribution in 2200 K, 4000 K or 5000 K. 9 part numbers – select by colour temperature and beam below.

Part numbers9
IP RatingIP 66/67
MaterialSeawater resistant aluminium, powder coated C5M
Light SourceLED
Rated PowerMax. 220 W
PDFDatasheetSee part numbers
SKU TEF-2580-GEN2Marine › Floodlights

Common specifications

Material
Seawater resistant aluminium, powder coated C5M
Light Source
LED
Rated Power
Max. 220 W
Luminous flux (lm)
30000
IP Rating
IP 66/67
Operating Temperature
-40°C to +55°C
Dimmable
Yes, DALI
Weight
17.5

Documents 1

Datasheet

Variants and part numbers

Part number Optic and BeamTEF no. Files
1
2200 K – warm white

Warm light for accommodation decks, walkways and areas where glare and light pollution must be kept low.

343957 Narrow25802121
343958 Medium25802122
343959 Wide25802123
2
4000 K – neutral white

Neutral white for general deck and work area lighting.

343991 Narrow25802141
343992 Medium25802142
343993 Wide25802143
3
5000 K – cool white

Cool white with the highest lumen output, for work areas, cargo decks and floodlighting over distance.

343995 Narrow25802151
343996 Medium25802152
343997 Wide25802153

Click a column heading to sort.

Related series

High-performance industrial LED floodlight from R. STAHL Tranberg, ideal for hazardous locations, providing durable and efficient illumination for industrial safety and security applications. TEF 2580 BlueLine Floodlight, 1st Generation (discontinued) – replaced by TEF 2580 LED 2.0First generation BlueLine LED floodlight, 200 W / 20 000 lm or 300 W / 30 000 lm, 5000 K, narrow, medium, w… TEF 2581 Floodlight with 10 000lm TEF 2581 BlueLine Floodlight 10 000 lm – LED area lighting, 2200 K to 5000 K, standard or DALICompact LED floodlight for area lighting on ships and smaller vessels: 10 000 lumen at 77 W, IP66/67, seawa… TEF 2581 Floodlight with 5000lm TEF 2581 BlueLine Floodlight 5000 lm – LED area lighting, 2200 K to 5000 K, standard or DALICompact LED floodlight for area lighting on ships and smaller vessels: 5000 lumen at 40 W, IP66/67, seawate…

The TRANBERG® BlueLine Floodlight TEF 2580 LED (2.0 Generation) is built for area lighting on today’s vessels, from conventional ships to new designs including autonomous vessels. It delivers a typical output of 30 000 lumen (depending on colour temperature) at a maximum of 220 W, with uniform light distribution across the illuminated area.

The housing is made of seawater-resistant aluminium, powder coated to corrosion class C5M, with a glass front. It is rated IP66/67 and operates from -40 °C to +55 °C (-40 °F to +131 °F), making it suited for harsh marine environments.

Installation is fast: two Phoenix QPD quick-connect plugs take cable up to 2.5 mm², and several mounting options are available. DALI is included as standard for integration into dimming and lighting control systems. The low weight (17.5 kg including bracket and packaging) and maintenance-free LED design help reduce both CAPEX and OPEX.

Key features

  • Typical 30 000 lm, max 220 W
  • Narrow (19.2°), medium (46.9°) and wide (102.1°) beam
  • 2200K, 4000K and 5000K
  • IP66/67, corrosion class C5M
  • DALI included
  • Phoenix QPD quick installation plugs
  • Operating temperature -40 °C to +55 °C
Material

Seawater resistant aluminium, powder coated C5M
Light Source

LED
Voltage

230/240 V AC
Rated Power

Max. 220 W
Luminous flux (lm)

30000
IP Rating

IP 66/67
Operating Temperature

-40°C to +55°C
Dimmable

Yes, DALI
Weight

17.5
