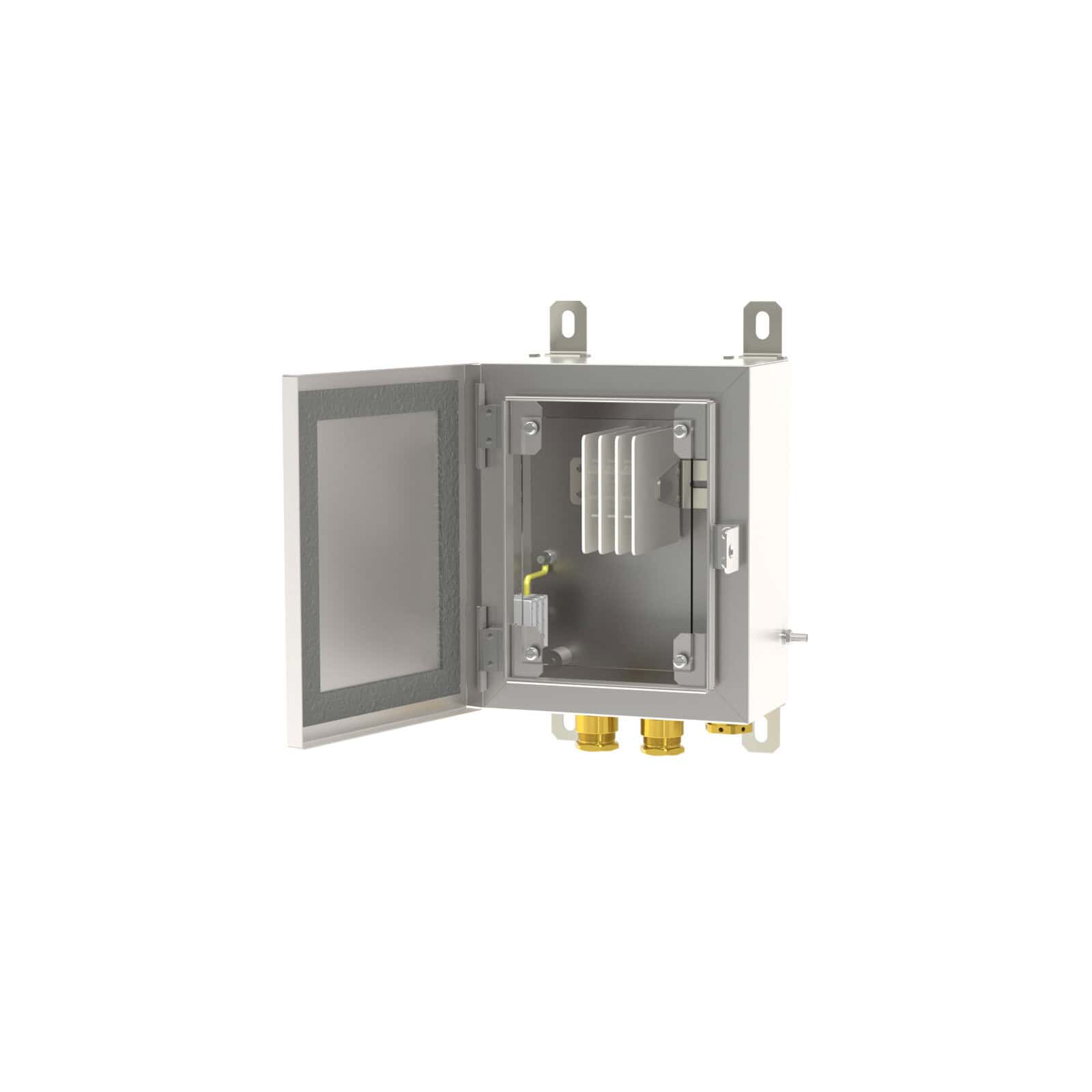

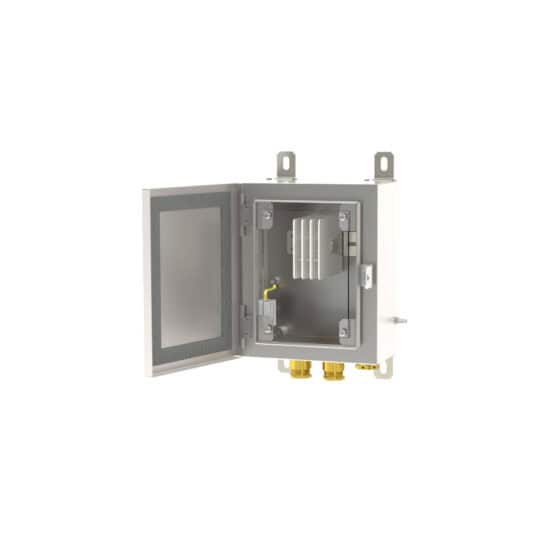

The High Voltage A-block solution is a flexible, certified enclosure system designed for demanding energy applications in Zone 1, Zone 2, and safe areas. Built in acid-resistant stainless steel (AISI 316L), the system combines safety, durability, and adaptability for custom high-voltage distribution needs.
-
Voltage range: 7.0 – 11 kV (customizable on request)
-
Current rating: up to 100 A
-
Compact stainless-steel enclosures (IP66 ingress protection)
-
IECEx / ATEX approved (Ex eb IIC T4, T5, T6)
-
Suitable for both AC and DC applications
-
Flexible sizing to meet project-specific requirements
-
Integrated copper earthing bar and safety cover (IP2X)
-
Wide ambient operating range: -20°C to +40°C (silicone gasket: -50°C to +60°C)
Applications
The A-block solution is engineered for safe and reliable high-voltage junctions in offshore platforms, renewable energy installations, and other harsh environments where compact design, certified safety, and customisation are critical.
