| SKU | Name | Voltage | Bracket | CAP437 compliant |
|---|---|---|---|---|
| 99751000 | TEF 9975 IMT LED Helideck Floodlight Ex 90-250V Dimmable | 90...250 V AC | Low | Yes |
| 99751001 | TEF 9975 IMT LED Helideck Floodlight Ex 90-250V Dimmable High Bracket | 90...250 V AC | High | No |
| 99752000 | TEF 9975 IMT LED Helideck Floodlight Ex 24V Dimmable | 24 V DC | Low | Yes |
| 99752001 | TEF 9975 IMT LED Helideck Floodlight Ex 24V Dimmable High Bracket | 24 V DC | High | No |

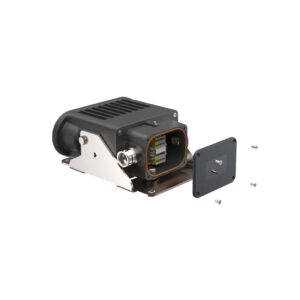

TEF 9975 LED Floodlight
TEF 9975 LED Floodlight, Helideck Floodlight System
Explosive atmospheres: Zone 1, 2 & Safe Area & Areas with combustible dust: Zone 21 & 22
Related products
Aviation
TEF 2440 Perimeter Light LED Safe Area
Aviation
Cleanly and clearly indicating the TD/PM Circle and H, the TRANBERG® IMT CIRCLE & H stands out through its robust design, use of only the most durable materials, ease of installation and minimum maintenance requirements.
TEF 46003xx Zone 1 or Non-Ex versions available
Aviation
TEF 2460 Obstruction Light LED Zone 1, Zone 2 & Safe Area Tranberg TEF 2460 EX Obstruction Light is a high quality fixture which can be used in most applications, especially for those hard to reach places. Covering the requirements within ICAO for Low Intensity obstruction lights (Type A & B), it is a versatile unit which exceeds customer expectations.
Aviation
The TEF9980 Status lights are designed to fulfil the latest requirements of CAA UK CAP 437, as well as the operator’s needs for products that are cost-effective, reliable, requiring no maintenance and applicable for use in all environments.
Aviation
8 circuits 220-240 VAC 50/60Hz, B10 A circuit breakers.
Aviation
TEF 2440 LED Obstruction Light Low Intensity, Type B Safe Area Material: Acid proof stainless steel powder coated RAL9010 Globe: Polycarbonate, red Input voltage: 230 VAC 50/60Hz, 24 VAC/VDC Light output: >32cd. (According to ICAO Annex 14 Vol. 1 Ch. 6 Low Intensity Type B) Power consumption: Max. 10W Life length, light source: Min. 50,000 working hours Cable entries: 2 x Ø25 mm Delivered with 2 x E204/622 M25/D kit, brass Cable diameter: 11,0-15,0 mm -15,0-20,1 mm Operating temperature: -30° to +45°C Ingress protection: IP66 Weight w/ package: 2.0 kg
