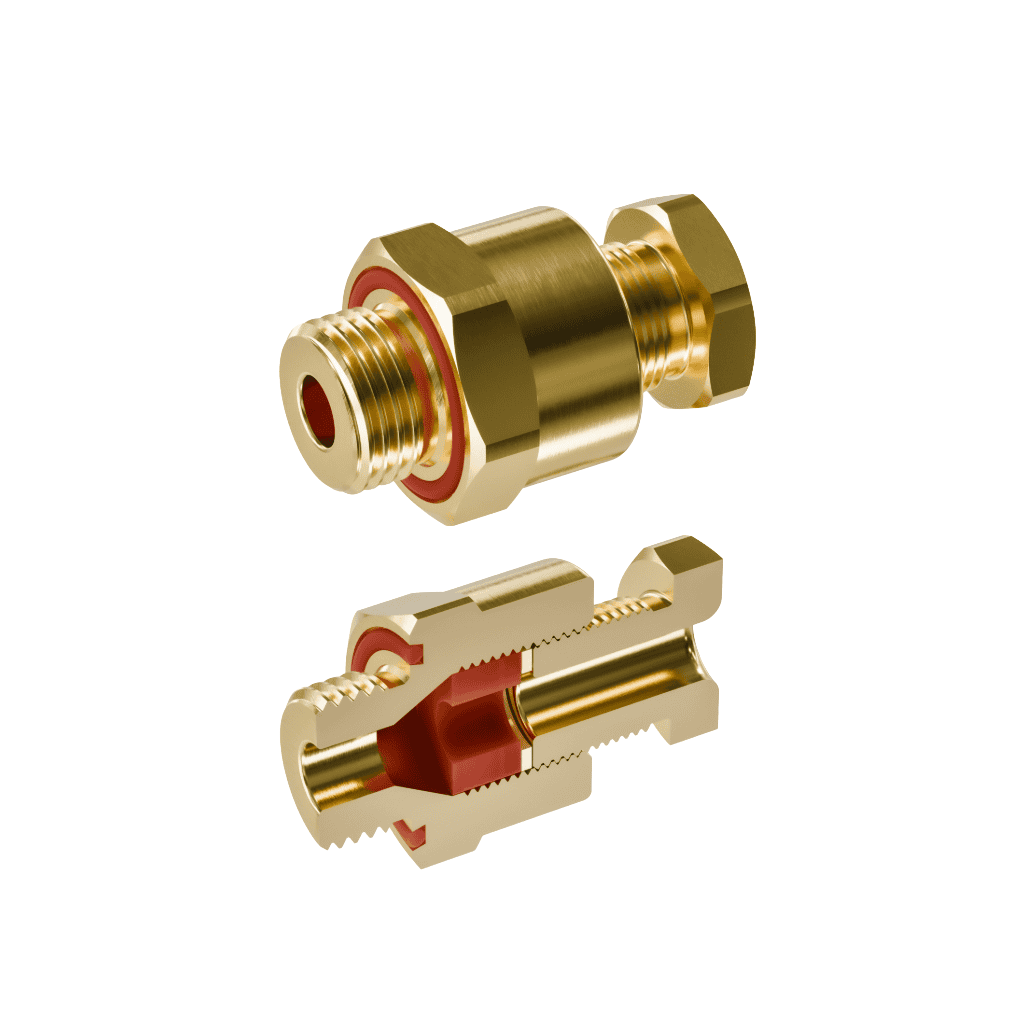

The TRANBERG® TEF E204/622 is an Ex e cable gland for unarmoured and braided cables, made in brass and developed and manufactured at the R. STAHL Tranberg factory in Stavanger. It seals on the outer sheath of the cable with a silicone gasket and has an O-ring for sealing between the gland and the enclosure. Every size is available with a 9 mm or 15 mm entry thread length.
Application
- Outdoor or indoor installation of unarmoured and braided cables
- Hazardous area Zone 1 and Zone 2, and safe area
- Sealing on the cable outer sheath only
Features and benefits
- Silicone gasket sealing on the cable outer sheath
- O-ring for sealing between cable gland and enclosure
- 9 mm or 15 mm entry length
- Delivered in brass or stainless steel AISI 316
- Certified to both ATEX and IECEx
Technical data
| Material, cable gland | Brass |
|---|---|
| Material, gasket | Silicone Shore A 60, red |
| Material, O-ring | Silicone Shore A 70, red |
| Ingress protection | IP66 / IP67 |
| Ambient temperature | −60 °C to +135 °C |
| Cable type | Unarmoured and braided |
| Sealing technique | Silicone gasket, sealing on cable outer sheath |
| Entry length | 9 mm or 15 mm |
| Ex protection | II 2 G Ex eb IIC |
Approvals and certificates
- IECEx certificate IECEx NEM 13.0021X
- ATEX certificate Nemko 13 ATEX 1548X
- Directive 2014/34/EU; IEC 60079-0, IEC 60079-7
Special conditions for use: additional clamping of the cable shall be installed to ensure that pulling and twisting is not transmitted to the terminals.
Datasheet, user manual, EU declaration of conformity and the certificates apply to the whole E204/622 series and are listed once above the variant table.
Selecting the right size
Every variant has its own part number. Choose by entry thread, entry length (9 mm or 15 mm) and overall cable diameter: the cable’s outside diameter must fall inside the clamping range of the sealing code. Several sealing codes are available for each thread size. The Option column marks kits with more than one seal, variants supplied with a lock nut or self-locking nut, and seals for flat cables. Across-flats and across-corners dimensions are given for spanner and hole-spacing planning.
The same gland is also available in stainless steel AISI 316. For Ex d / Ex e applications, see the TEF D620.
