Home / Marine / Searchlights
  • Tranberg searchlight tef 2650
  • Tef2630 searchlight
Tranberg searchlight tef 2650

TRANBERG® Xenon Searchlight – TEF 2650

TEF 2650 Commander Xenon, Network Operated
Safe Area

Categories: Marine, Searchlights
  • Aviation
    • Circle & H
    • Control System
      • TEF 4600
    • Floodlights for Helidecks
    • Obstruction Lights
    • Perimeter Lights
    • Status Light
    • Windsock
  • Energy
    • Cable Cleats
    • Cable Glands, Stopping Plugs & Adaptors
      • Accessories
        • Earth Tag
        • Insert Stopping Plug
      • Adapters & Reducers
      • Breather / Drain Plug
      • Cable Glands
        • D620 – AISI316
        • D620 – Brass
        • E204/622 – AISI316
        • E204/622 – Brass
      • Lock Nuts
      • Stopping Plugs
        • TEF 794 – Brass
    • Enclosure Heaters
    • Heat Tracing Solutions
      • Accessories
      • Raychem Heat Tracing Cables
    • Instrument & Telecom Enclosures
    • Junction & Terminal Boxes
      • TRANBERG® Junction Box TEF 1058
    • Standard STAHL 8150 Ex e Enclosures
    • TEF 1061 Exe Fiber Splicebox
    • Thermostat
      • Capillary Tube
    • TTC2 Smart Thermostat
  • Marine
    • Control Panels
      • Commander Utility Operator Panel
      • Navigation Lights Control Panels
      • Searchlight Control Panels
    • Floodlights
      • TEF 2581
    • Navigation Lights Systems
      • Navigation Lights
        • TEF 2880 Duplex
        • TEF 2880 Simplex
    • Searchlights
      • TEF 2620
      • TEF 2630
      • TEF 2650
    • Ship Horns
    • Technical Lighting
      • Control Panel
      • LED Luminaire
      • Linear Lighting
  • Variations
  • Description
  • Specifications
SKUNameLight SourceRated PowerVoltageControl SystemLuminous flux (lm)Range 1 Lux (meter)Weight
2650323450TEF 2650 Searchlight incl. Lightbulb: Xenon 1000W, 230V, Bus Controlled, w/M.Focus Stainless Steel,Xenon1000 W230 V ACBus Controlled w/motor focus32000670058
2650324450TEF 2650 Searchlight incl. Lightbulb: Xenon 1600W, 230V, Bus Controlled, w/M.Focus Stainless Steel,Xenon1600 W230 V ACBus Controlled w/motor focus600007400120
2650425450TEF 2650 Searchlight incl. Lightbulb: Xenon 2000W, 230V, Bus Controlled, w/M.Focus Stainless Steel,Xenon2000 W230 V ACDirect Operated80000920058
2650426450TEF 2650 Searchlight incl. Lightbulb: Xenon 3000W, 230V, 50/60Hz Bus Controlled, w/M.Focus StainlesXenon3000 W230 V ACBus Controlled w/motor focus14000011500175

The TRANBERG® TEF 2650 Commander Xenon 1000W/1600W Searchlight is built for vessels requiring maximum visibility and performance in the harshest maritime environments. Suitable for all vessel types, it offers superior long-range illumination, making it a preferred alternative to halogen in demanding applications such as ice navigation.

Engineered with a unique colour distribution, the Xenon “Ice Searchlight” rapidly detects ice and enhances the visibility of surface objects. With peak beam intensities of up to 52 million candela and ranges exceeding 7,400 meters (1 lux at target), it delivers unmatched performance for navigation and search operations.

The TEF 2650 Xenon is constructed from stainless steel with a toughened soda-lime glass lens and a silver-plated glass reflector, protected by IP56 ingress protection. It withstands sub-zero temperatures down to -50°C, includes self-regulating anti-condensation and motorhouse heating, and ensures reliable operation even in extreme climates.

Designed for flexibility, it can be operated from 1–16 control panels and includes a remote-controlled motor focus. Optional features include pedestal mounting, spread filters, radio control systems, and additional control panels with lamp lifetimes of approximately two thousand hours and robust build quality. The TEF 2650 Xenon Searchlight offers long-lasting, high-performance lighting for global maritime operations.

Other information

Select a item in Variations-tab to see specific technical information.

Related products

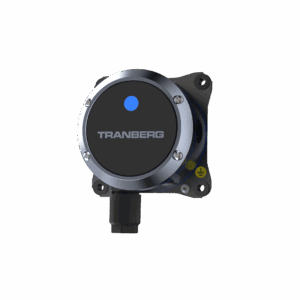

Panama Steering Light
