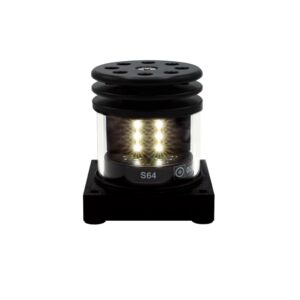

TRANBERG® Compact Navigation Light Duplex
TEF 2890 LED Navigation Lights
For Vessels 12-50 meters in Length
| Other information | Select a item in Variations-tab to see specific technical information. |
|---|
Related products
Material Housing: Seawater Resistant Aluminium Corrosion Protection: Powder-Coated (C5M) Material Bracket: Stainless Steel 316 (3mm) Dimensions: 401 x 212 x 126mm Operating Frequency: 50/60Hz Rated Power: 70W Operating Temperature: -40(C) - +55(C) Lumen per Watt: 142lm Front Cover: Glass Weight: 6.3kg

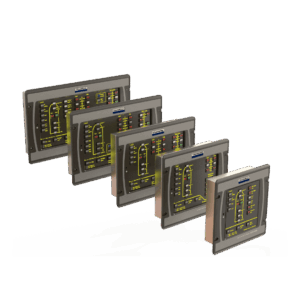

Commander Utility Operator Panel
The operator panels for TEF 4500 Commander Utility are very flexible in sizes and configurations. The panels are custom built and allow for the use of text in several languages
Marine
TEF 2870 Navigation Light For Vessels 20-50m and more than 50m in Length
TEF 2650 Commander Halogen, Network Operated Safe Area
Material Housing: Seawater Resistant Aluminium Corrosion Protection: Powder-Coated (C5M) Material Bracket: Stainless Steel 316 (3mm) Lumens: 5.000lm Color temp: 2200+4000+5000K Power consumption: 70W Dimensions: 301 x 212 x 126mm Operating Temperature: -40(C) – +55(C) Front Cover: Glass Weight: 4,8 kg
Aviation

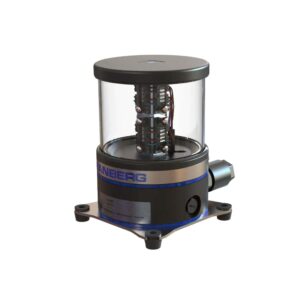

TEF 2460 Obstruction Light LED Zone 1, Zone 2 & Safe Area Tranberg TEF 2460 EX Obstruction Light is a high quality fixture which can be used in most applications, especially for those hard to reach places. Covering the requirements within ICAO for Low Intensity obstruction lights (Type A & B), it is a versatile unit which exceeds customer expectations.
Commander Utility Operator Panel
The operator panels for TEF 4500 Commander Utility are very flexible in sizes and configurations. The panels are custom built and allow for the use of text in several languages
Aviation
TEF 2440 LED Obstruction Light Low Intensity, Type B Safe Area Material: Acid proof stainless steel powder coated RAL9010 Globe: Polycarbonate, red Input voltage: 230 VAC 50/60Hz, 24 VAC/VDC Light output: >32cd. (According to ICAO Annex 14 Vol. 1 Ch. 6 Low Intensity Type B) Power consumption: Max. 10W Life length, light source: Min. 50,000 working hours Cable entries: 2 x Ø25 mm Delivered with 2 x E204/622 M25/D kit, brass Cable diameter: 11,0-15,0 mm -15,0-20,1 mm Operating temperature: -30° to +45°C Ingress protection: IP66 Weight w/ package: 2.0 kg
