| SKU | Name | Luminous flux (lm) | Dimensions | Voltage | Colour Temperature |
|---|---|---|---|---|---|
| 27851210 | TEF 2785 LED Luminaire, 100-240V, 2200k (White), QPD | 1500 | 140 × 140 × 83 mm | 100 ... 240 V AC | 2200 |
| 27851410 | TEF 2785 LED Luminaire, 100-240V, 4000k (White), QPD | 1900 | 140 × 140 × 83 mm | 100 ... 240 V AC | 4000 |
| 27851510 | TEF 2785 LED Luminaire, 100-240V, 5000k (White), QPD | 2000 | 140 × 140 × 83 mm | 100 ... 240 V AC | 5000 |
| 27852210 | TEF 2785 LED Luminaire, 24V, 2200k (White), QPD | 1500 | 140 × 140 × 83 mm | 24 V DC | 2200 |
| 27852410 | TEF 2785 LED Luminaire, 24V, 4000k (White), QPD | 1500 | 140 × 140 × 83 mm | 24 V DC | 4000 |
| 27852510 | TEF 2785 LED Luminaire, 24V, 5000k (White), QPD | 1500 | 140 × 140 × 83 mm | 24 V DC | 5000 |

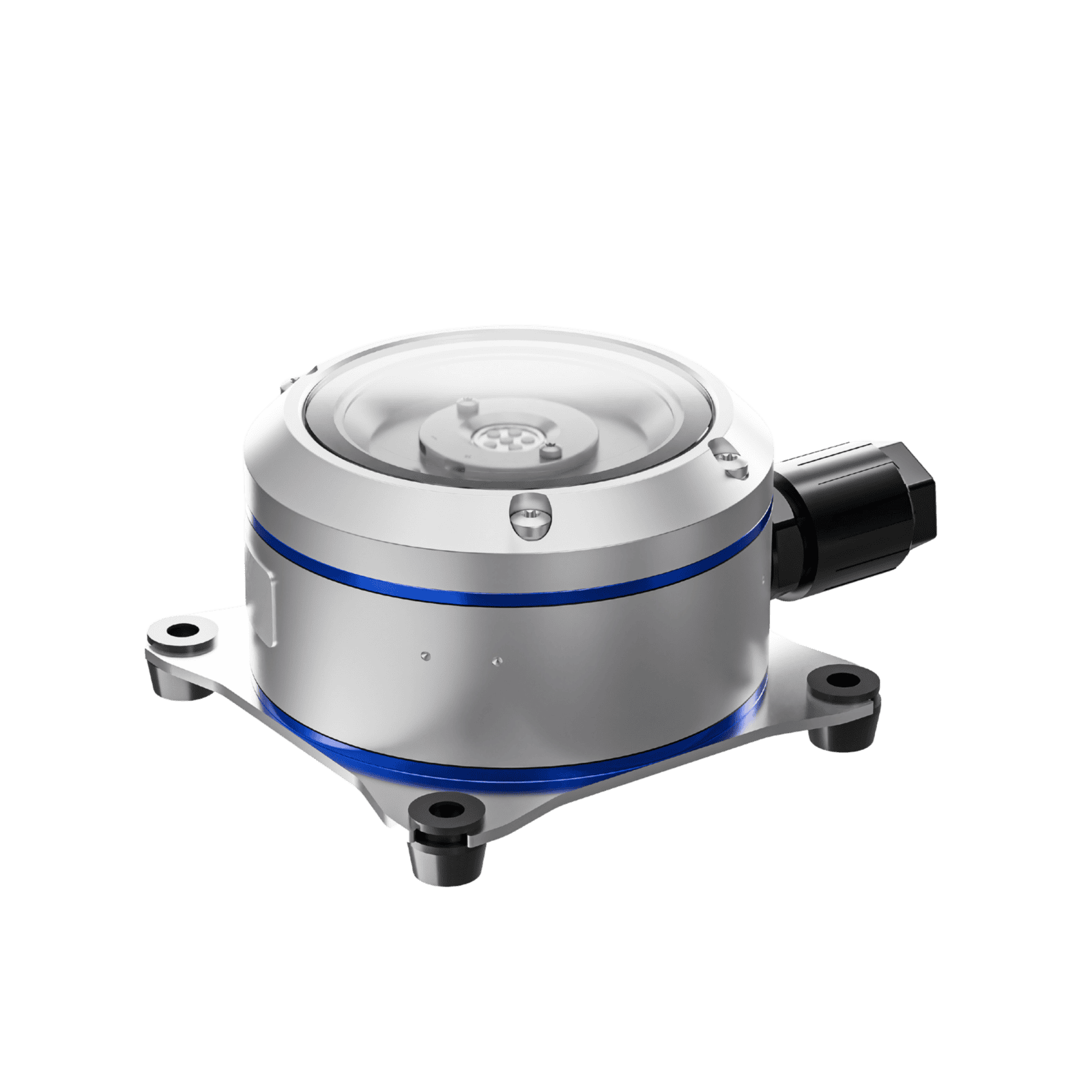

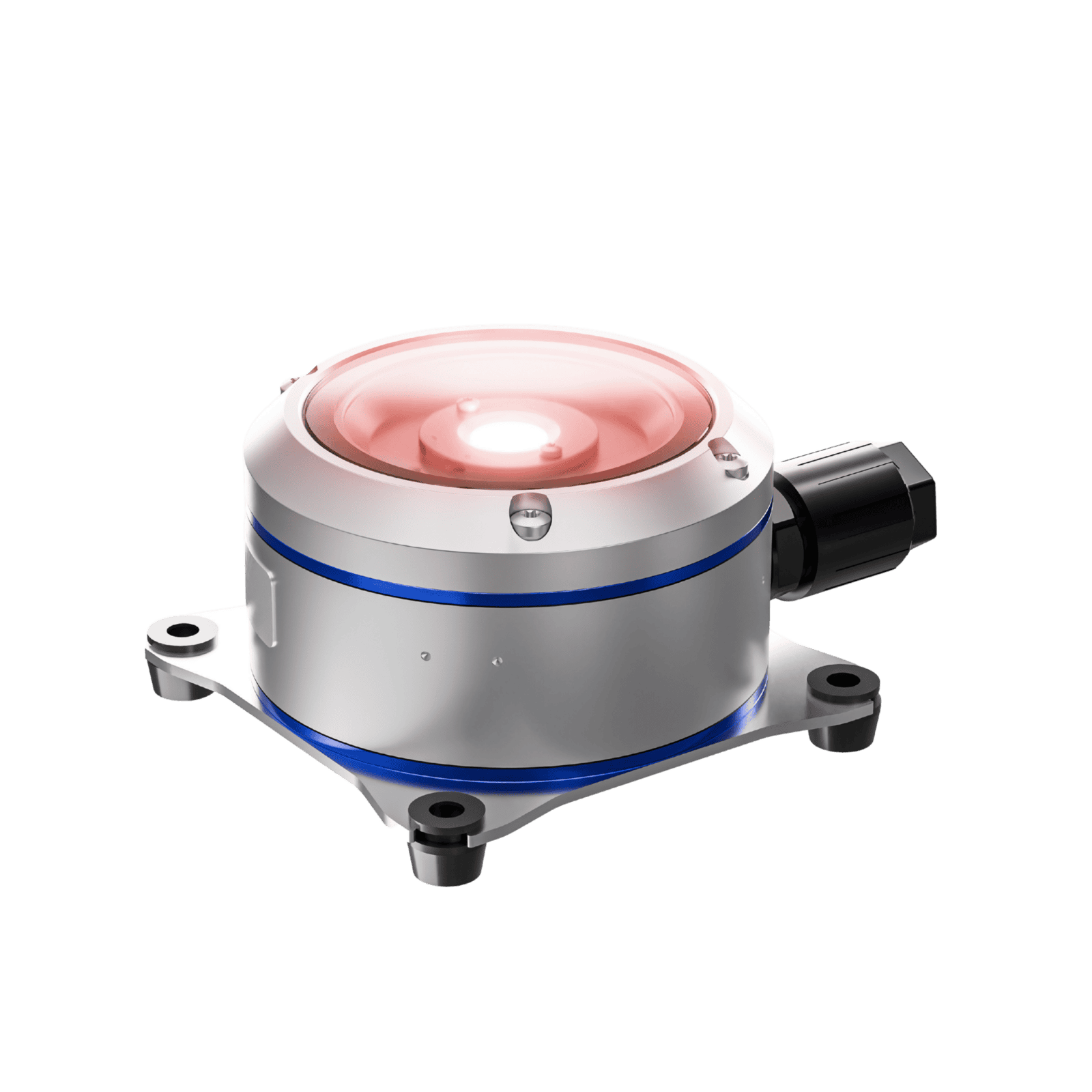

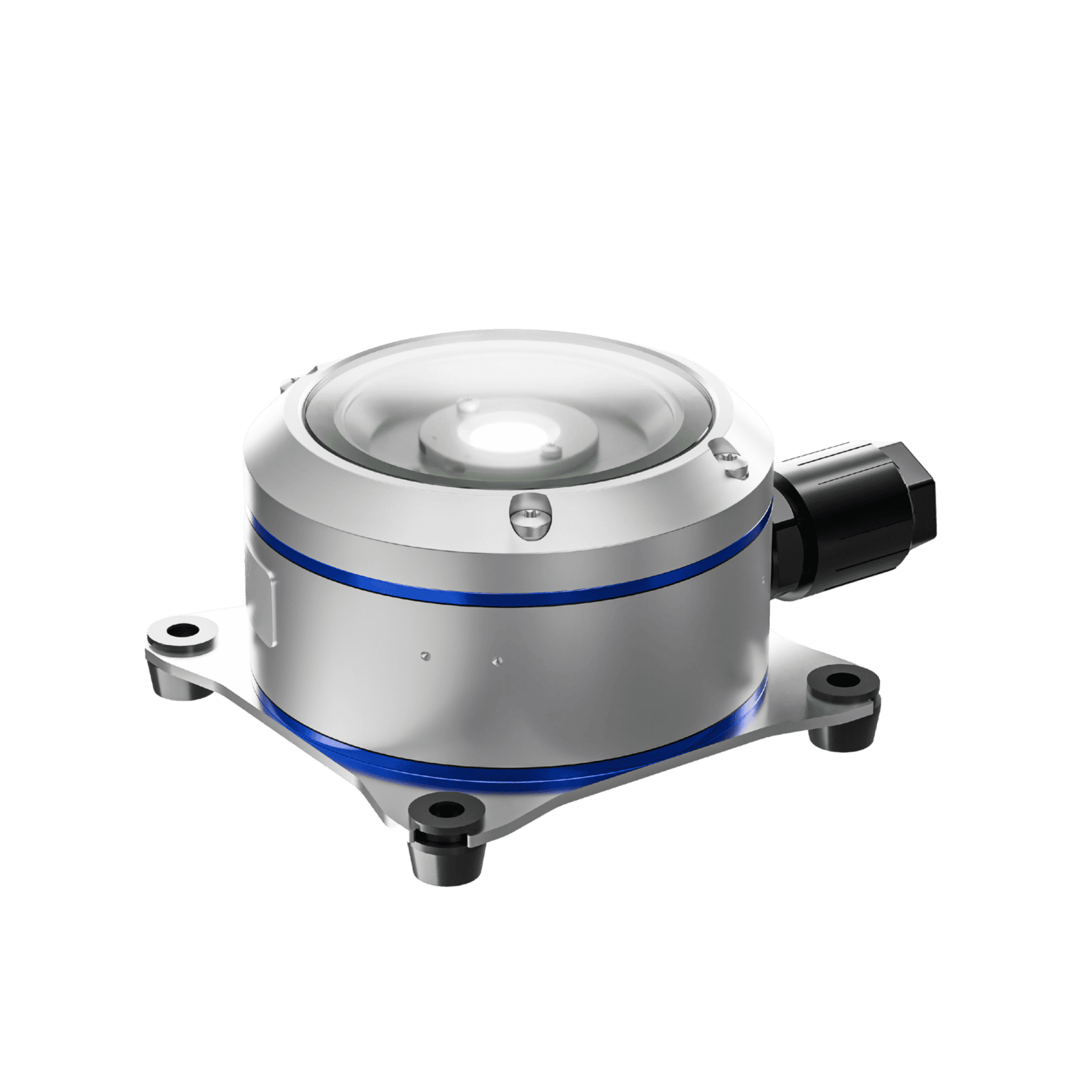

TRANBERG® BlueLine LED Deck light
Material: Anodized seawater resistant aluminium, stainless steel and glass
Ingress protection: IP 66/67
Weight: 1,5 kg
Mounting: 4ea M6
Cable entries: Phoenix QPD quick installation plugs for cable up to
2,5mm2, cable gland, possibility for through wiring
Operating temperature: -30° to +45°C
Working hours: Predicted 50 000 h
Light source: COB-LED
Light distribution: Wide
Light color & output:
2200k 1500lm
4000k 1900lm
5000k 2000lm
CRI: >80
Power supply: 100-240 V AC / 24V DC
Power consumption: Max. 15W
