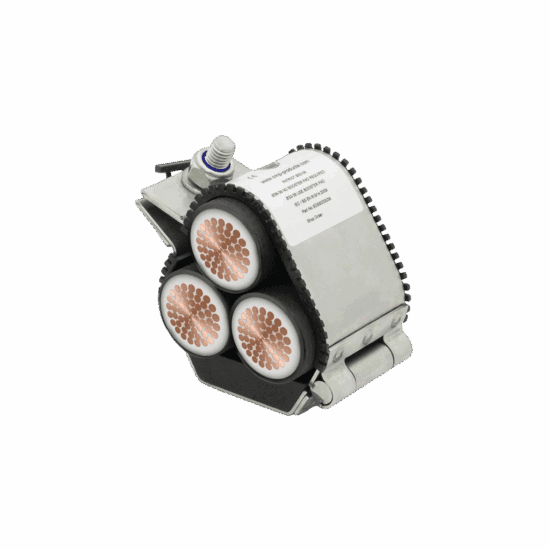

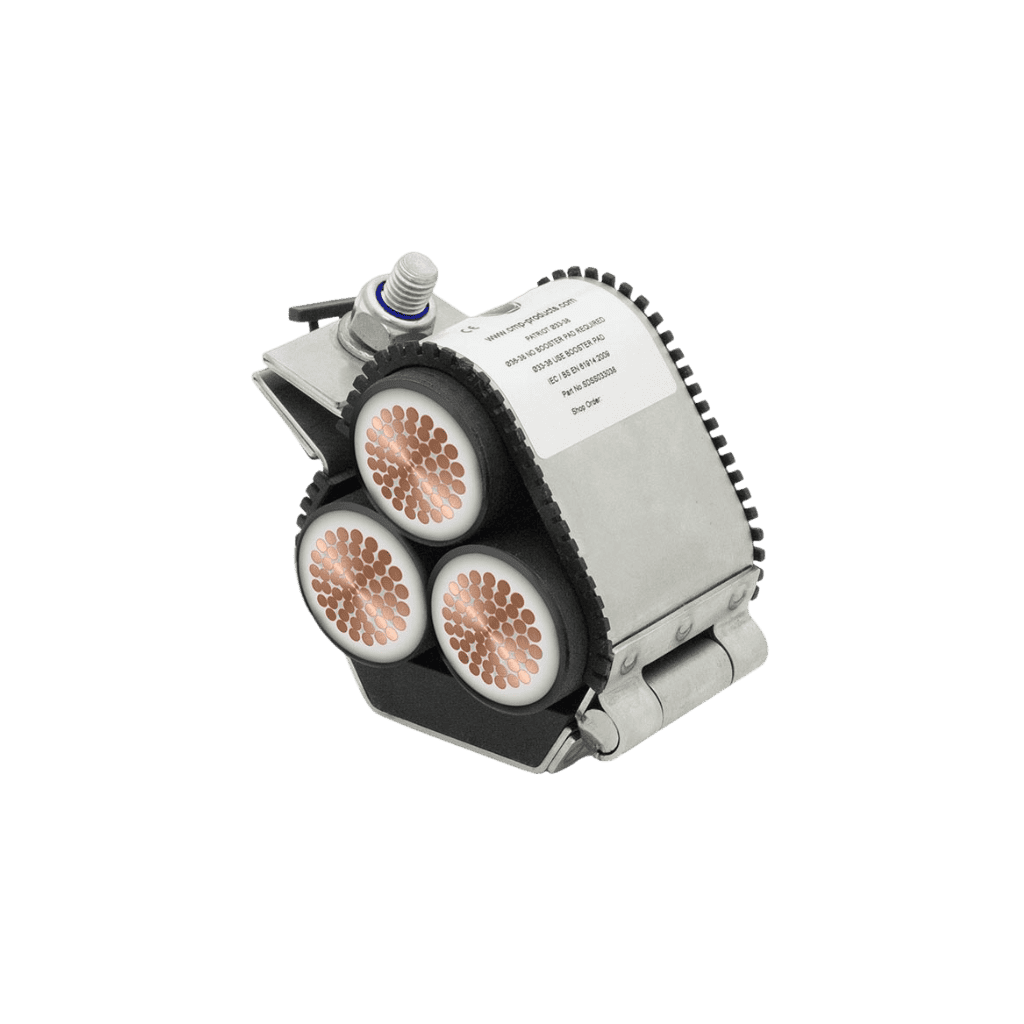

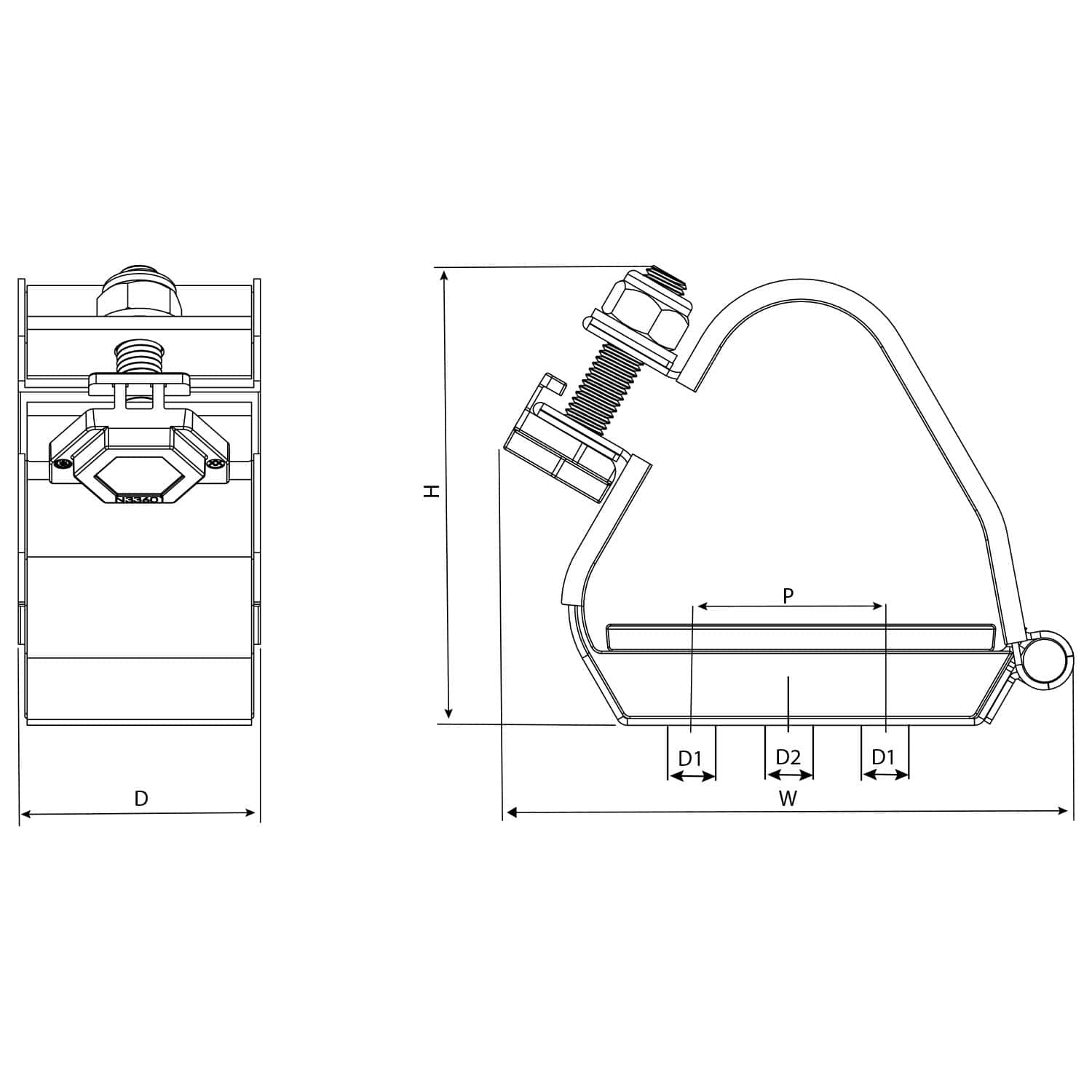

The CMP Patriot SDSS is a hinged, standard-duty trefoil cable cleat in stainless steel 316L, engineered to IEC 61914 for secure retention of three cables in trefoil formation without damaging the sheath. The fully opening hinge makes cable placement easy, the mouthpiece bolt closes the cleat, and three M10 clearance holes in the single base give flexible mounting on ladder, tray or structure. LSF/LS0H, phosphorus-free polymer liners protect the cables against abrasion, wear and thermal movement and add restraint under short-circuit forces. Short-circuit withstand up to 135 kA peak. R. STAHL Tranberg supplies the Patriot range for offshore, marine and industrial installations.
Application
- Trefoil cable formations on ladder, tray and steelwork, cable diameters approx. 19 to 103 mm
- Offshore, marine and industrial installations, indoor and outdoor
- Short-circuit restraint of power cables
Features and benefits
- Stainless steel 316L, corrosion-resistant
- Hinged, fully opening design with mouthpiece bolt
- Three M10 fixing holes in one base
- LSF/LS0H, phosphorus-free liners
- Short-circuit withstand up to 135 kA peak
- Tested to IEC 61914
Technical data
| Material | Stainless steel 316L, polymer liners LSF/LS0H |
|---|---|
| Formation | Trefoil |
| Fixing | 3 × M10 clearance holes |
| Short-circuit withstand | Up to 135 kA peak |
| Standard | IEC 61914 |
For single or parallel cables in heavy-duty applications, see the CMP Sapphire SHDSS. Select the cleat by the outer diameter of the cable; spacing and quantities depend on the fault level, see CMP’s cleat spacing guidance or ask us.
