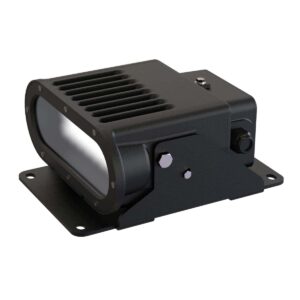

Tranberg imt led helideck floodlight

TEF 9975 IMT LED Helideck Floodlight Ex 90-250V Dimmable High Bracket

SKU: 99751001 Categories: ,
Declaration of Conformity (pdf, 0KB)
TEF 9975 IMT Helideck Floodlight DoC [TDC7380]
Download
Declaration of Conformity (pdf, 0KB)
TEF 9975 IMT Helideck Floodlight DoC [TDC7461]
Download
Product Certificate (pdf, 0KB)
TEF 9975 IMT Floodlight ATEX Cert.[TPC7337]
Download
Product Certificate (pdf, 0KB)
TEF 9975 IMT Floodlight IECEx Cert.[TPC7338]
Download
Datasheet (pdf, 0KB)
TEF 9975 Datasheet Floodlight [TPS7057]
Download
User Manual (pdf, 0KB)
TEF 9975 IMT User Manual LED Flood Light [TUM7058]
Download
Drawing (pdf, 0KB)
TEF 9975 TRANBERG IMT LED Helideck Floodl. GA High
Download
Weight 11 kg
Material

Marine Grade Aluminium
Surface Treatment

Anodization
Operating Frequency

50/60 Hz
Rated Power

40 W
Operating Temperature

-40 °C … +55 °C
IP Rating

IP 66
Colour Temperature

5000
Voltage

90…250 V AC
Light Source

LED
IECEx certificate no.

IECEx DNV 21.0055X
IECEx Protection

Ex eb mb tb
ATEX Certificate

DNV 21 ATEX 49246X
ATEX protection type

Ex eb mb
ATEX/IECExtemp range

-40°C +55°C
T Class

T3
CAA UK

NO
Color of Light

White
Luminous Intensity (cd)

17500
Luminous flux (lm)

2400
Bracket

High
CAP437 compliant

No
Light Distribution Curve (ldt, 178KB)
LDT-File
Download
Light Distribution Curve (ies, 507KB)
IES-File
Download

Related products

TRANBERG® Status Light (Main)

Aviation

TRANBERG® Status Light (Main)

The TEF9980 Status lights are designed to fulfil the latest requirements of CAA UK CAP 437, as well as the operator’s needs for products that are cost-effective, reliable, requiring no maintenance and applicable for use in all environments.

Obstruction light for helideck landing (C&H) systems with red dome.

Aviation

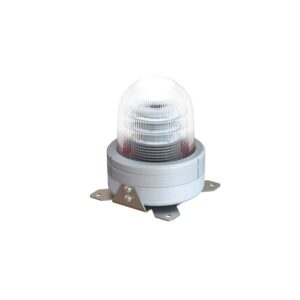

TEF 2440 Obstruction Light
