SKU | Name | Elnr |
---|---|---|
50310060 | CMP Cable Cleats: Sapphire SHDSS032038 Cleats | 1360076 |
50310061 | CMP Cable Cleats: Sapphire SHDSS038046 Cleats | 1360077 |
50310062 | CMP Cable Cleats: Sapphire SHDSS046051 Cleats | 1360078 |
50310063 | CMP Cable Cleats: Sapphire SHDSS051058 Cleats | 1360079 |
50310064 | CMP Cable Cleats: Sapphire SHDSS058070 Cleats | 1360080 |
50310065 | CMP Cable Cleats: Sapphire SHDSS070083 Cleats | 1360081 |
50310066 | CMP Cable Cleats: Sapphire SHDSS083097 Cleats | 1360082 |
50310067 | CMP Cable Cleats: Sapphire SHDSS096109 Cleats | 1360083 |
50310068 | CMP Cable Cleats: Sapphire SHDSS106120 Cleats | 1360084 |
CMP Cable Cleats: Sapphire

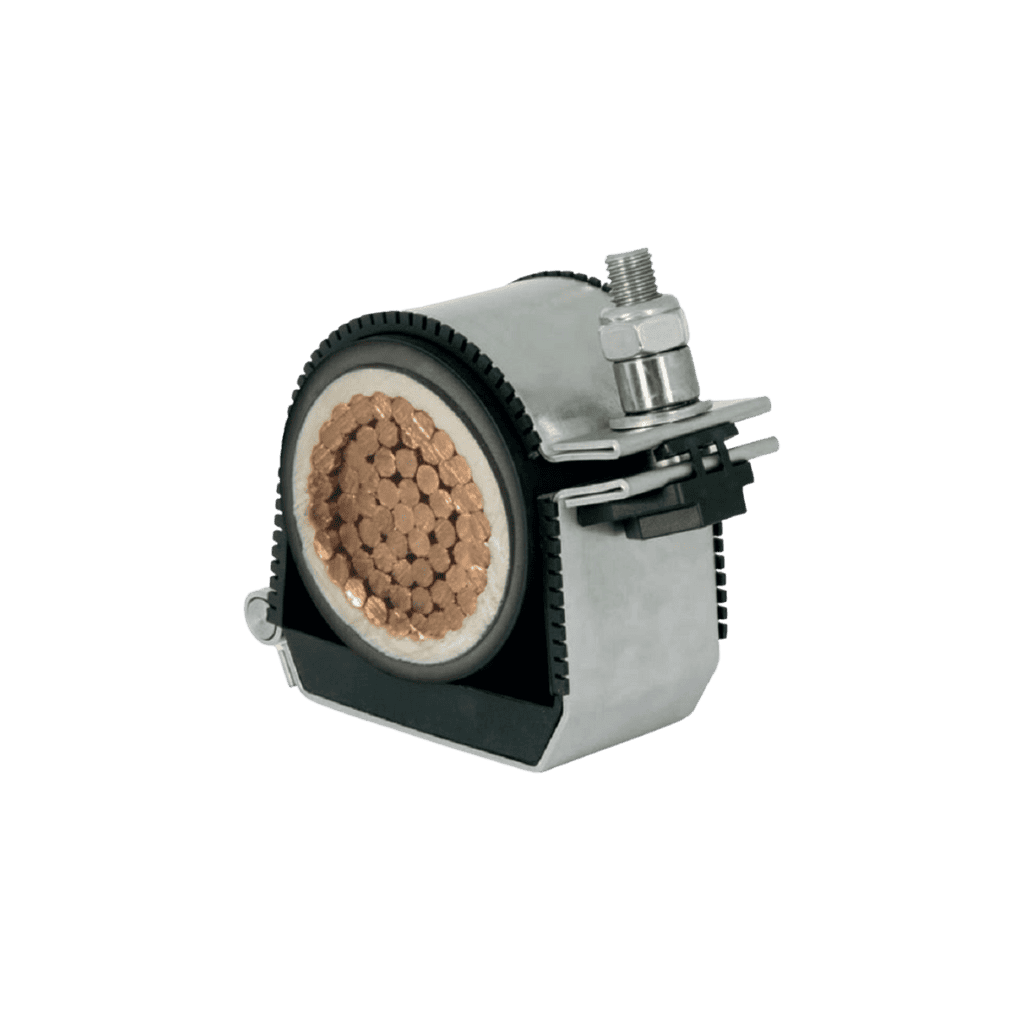

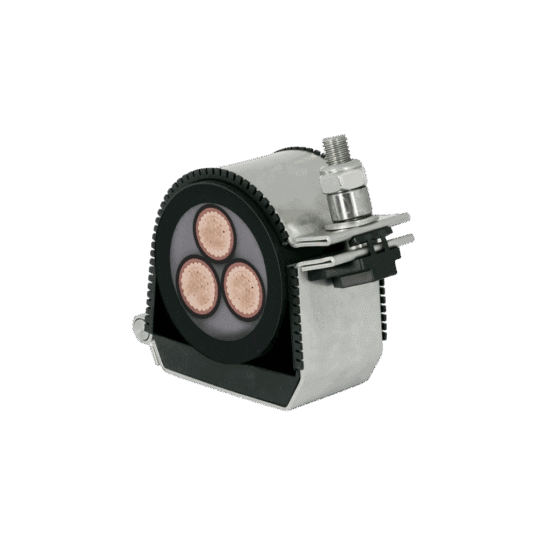

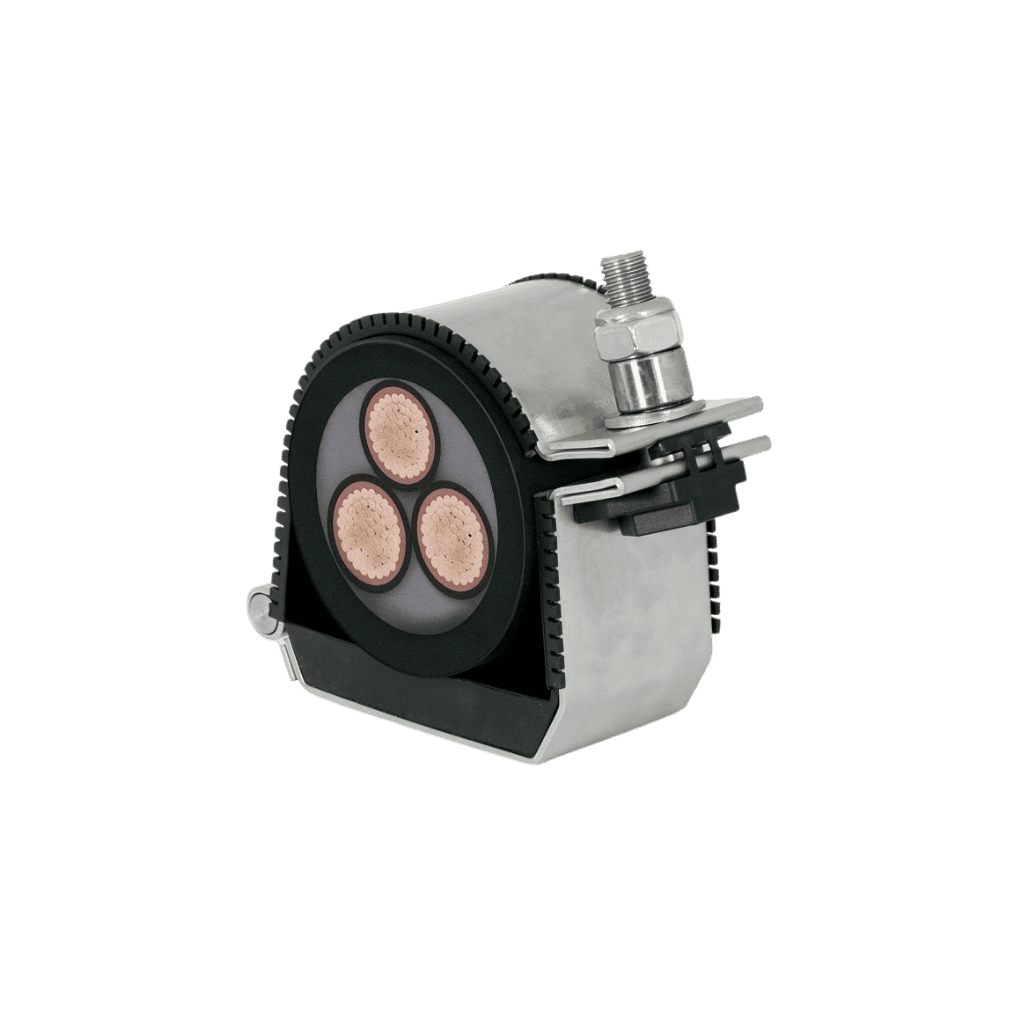

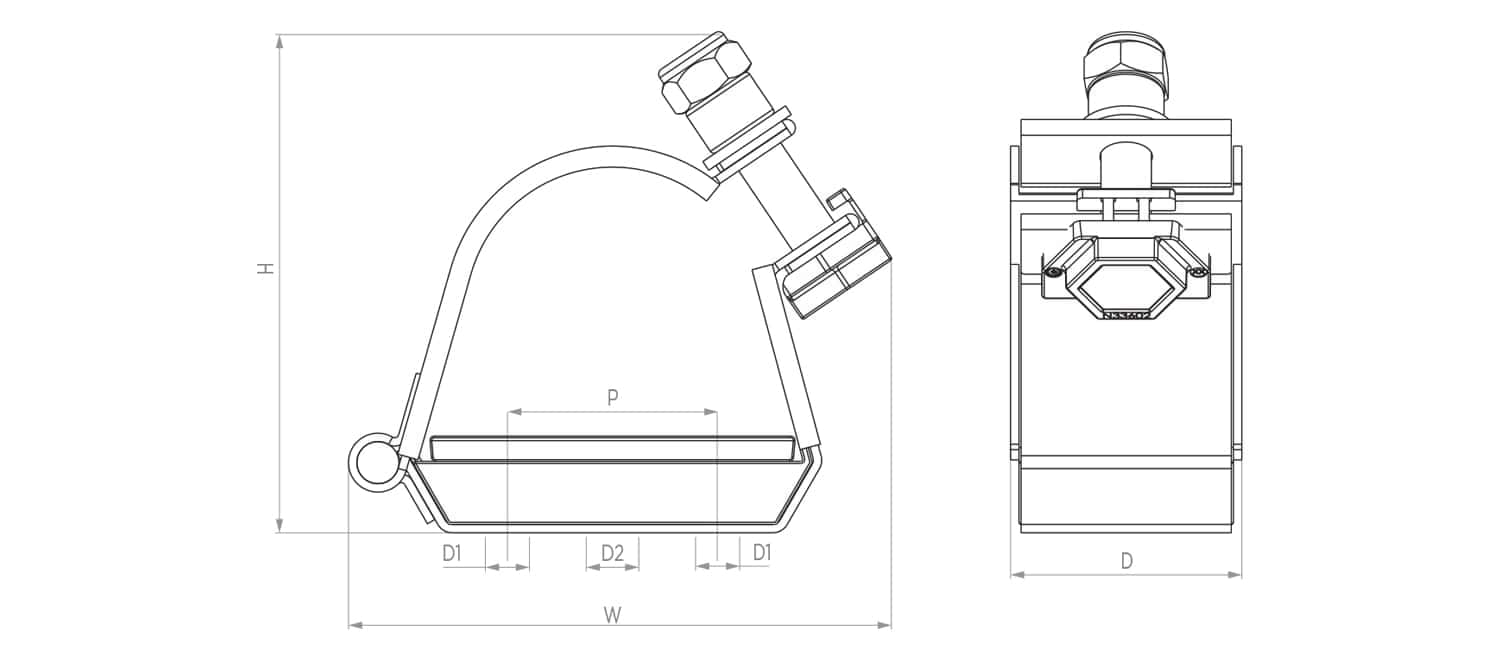

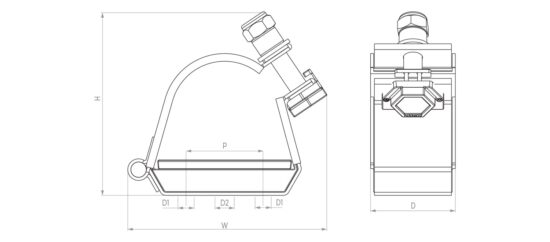

CMP Sapphire (SHDSS) Heavy-Duty Stainless-Steel Cable Cleat
A robust, hinged cable cleat engineered to meet IEC 61914 standards for securing single and parallel cable formations under extreme conditions. Fabricated from corrosion-resistant 316L stainless steel and rigorously tested for high short-circuit forces (up to 110 kA peak, 50 kA RMS), it ensures cable integrity even in the most demanding industrial environments. The hinged design with M12 and M10 fixing points offers installation flexibility, while standard LSF/LS0H, phosphorus-free liners protect against abrasion, thermal movement, and cable damage. Rated for temperatures from –60 °C to +60 °C, the Sapphire cleat combines durability and safety for offshore, marine, and high-voltage applications.
Related products
TEF D620 Zone 1, Zone 2 & Safe Area Cable Gland made of Brass. Exe / Exd 100% Pull-out force. Complies 100% with IEC/EN 60079-0 Cable retention requirements. No special conditions for safe use. With O-ring Entry Seal.
T3 TEF 9207 - IP66 - WITH JUNCTION BOX
TRANBERG® Junction Box TEF 1058
External Dimensions W 115 mm x H 135 mm x D 58 mm. Internal Dimensions W 80 mm x H 100 mm x D 50 mm.
Connection kit Pipe Mounting for Raychem Cables: 3BTV-5BTV-10QTVR-15QTVR-XTV-VPL 5x11 - w/Termination kit.
Energy
Compact composite Ex enclosure heater, 50W or 100W. Self-regulating, corrosion-proof, and suitable for Zone 1/2 areas.
Energy
Stahl Series 8150 with 1x16 or 3x16 Amp switch for heat trace Zone 1, Zone 2 & Safe Area
Energy
TEF 1058 Heat Tracing End Seal termination w/light – Pipe mounted – Ex – Bright chemical dip AISI316
Type 1058 End Seal, Heat Trace w/ Indicator Lamp Zone 1, Zone 2 & Safe Area

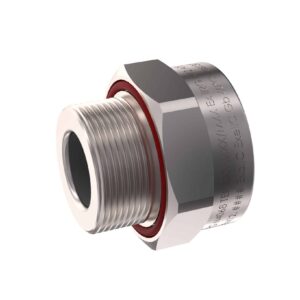

Male NPT Threads TEF 660 Zone 1, Zone 2 & Safe Area
